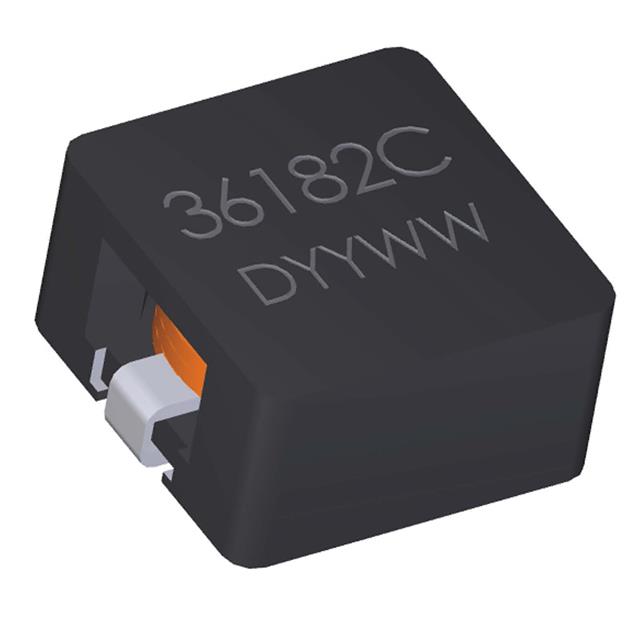

36102C

Active

Murata Power Solutions Inc.

POWER INDUCTOR (SMD), 1 ΜH, 9.5 A, SHIELDED, 3600 SERIES

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

POWER INDUCTOR (SMD), 1 ΜH, 9.5 A, SHIELDED, 3600 SERIES

Technical Specifications

Parameters and characteristics for this part

Part	Height - Seated (Max) [Max]	Height - Seated (Max)	Inductance	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Tolerance	Shielding	DC Resistance (DCR)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Type	DC Resistance (DCR) [Max]
Murata Power Solutions Inc. 36232C	0.165 in	4.2 mm	2.3 µH	6 A	6.8 mm	0.268 in	6.8 mm	0.268 in	Surface Mount	25 %	Unshielded	20 mOhm	125 °C	-40 °C	Nonstandard	Wirewound
Murata Power Solutions Inc. 36332C	0.165 in	4.2 mm	3.3 µH	4.6 A	6.8 mm	0.268 in	6.8 mm	0.268 in	Surface Mount	25 %	Unshielded		125 °C	-40 °C	Nonstandard	Wirewound	35 mOhm
Murata Power Solutions Inc. 36102C	0.165 in	4.2 mm	1 µH	9.5 A	6.8 mm	0.268 in	6.8 mm	0.268 in	Surface Mount	25 %	Unshielded	7.5 mOhm	125 °C	-40 °C	Nonstandard	Wirewound
Murata Power Solutions Inc. 36182C	0.165 in	4.2 mm	1.8 µH	7 A	6.8 mm	0.268 in	6.8 mm	0.268 in	Surface Mount	25 %	Unshielded		125 °C	-40 °C	Nonstandard	Wirewound	14 mOhm
Murata Power Solutions Inc. 36601C	0.165 in	4.2 mm	600 nH	12.5 Amps	6.8 mm	0.268 in	6.8 mm	0.268 in	Surface Mount	25 %	Unshielded		125 °C	-40 °C	Nonstandard	Wirewound	5 mOhm
Murata Power Solutions Inc. 36401C	0.165 in	4.2 mm	400 nH	14.5 A	6.8 mm	0.268 in	6.8 mm	0.268 in	Surface Mount	25 %	Unshielded	4 mOhm	125 °C	-40 °C	Nonstandard	Wirewound

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.78
Newark	Each	1000	$ 0.89

General part information

1 µH Unshielded Wirewound Inductor 9.5 A 7.5mOhm Max Nonstandard
