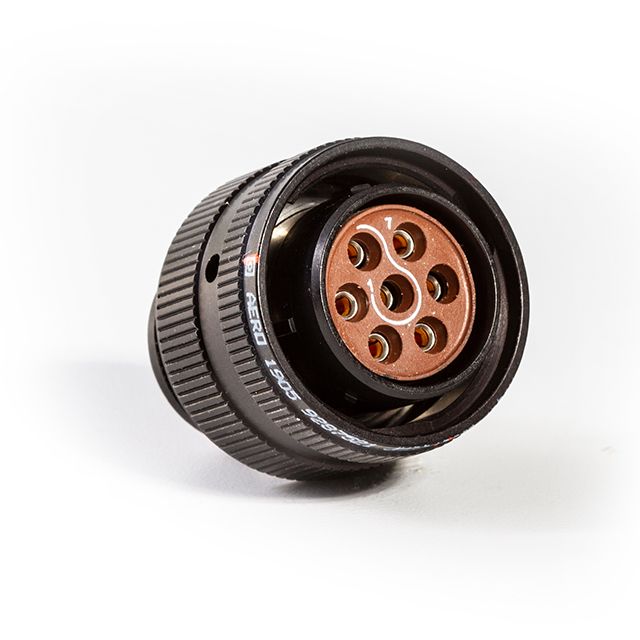

AE666R14B7SN

Active

Conesys

CONN PLUG FMALE 7POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conesys

CONN PLUG FMALE 7POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Fastening Type	Ingress Protection	Type	Housing Color	Qualification	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Contact Type	Shielding	Shell Finish	Number of Positions	Connector Type	Shell Material	Note	Contact Size	Current Rating (Amps)	Color	Contact Finish - Mating	Voltage Rating	Primary Material	Termination
Conesys AE666R14B15P6-LC	14	15	Bayonet Lock Threaded	IP67 - Dust Tight Waterproof	For Male Pins	Black	MIL-DTL-26500	Free Hanging (In-Line)	-55 °C	200 °C	6	Crimp	Shielded	Anodized	15	Plug Housing	Aluminum	Contacts Not Included	20
Conesys AE666R14B7SN	7	14	Bayonet Lock Threaded	IP67 - Dust Tight Waterproof				Free Hanging (In-Line)	-55 °C	200 °C	N		Shielded	Black Anodized	7	Female Sockets Plug	Aluminum			13 A	Black	Gold	600 V	Metal	Crimp
Conesys AE666R14B15PN-LC	14	15	Bayonet Lock Threaded	IP67 - Dust Tight Waterproof	For Male Pins	Black	MIL-DTL-26500	Free Hanging (In-Line)	-55 °C	200 °C	N	Crimp	Shielded	Anodized	15	Plug Housing	Aluminum	Contacts Not Included	20
Conesys AE666R14B15SN-LC	14	15	Bayonet Lock Threaded	IP67 - Dust Tight Waterproof	For Female Sockets	Black	MIL-DTL-26500	Free Hanging (In-Line)	-55 °C	200 °C	N	Crimp	Shielded	Anodized	15	Plug Housing	Aluminum	Contacts Not Included	20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Plug, Female Sockets Crimp
