Q-0A04O000H072i

Active

Amphenol Custom Cable

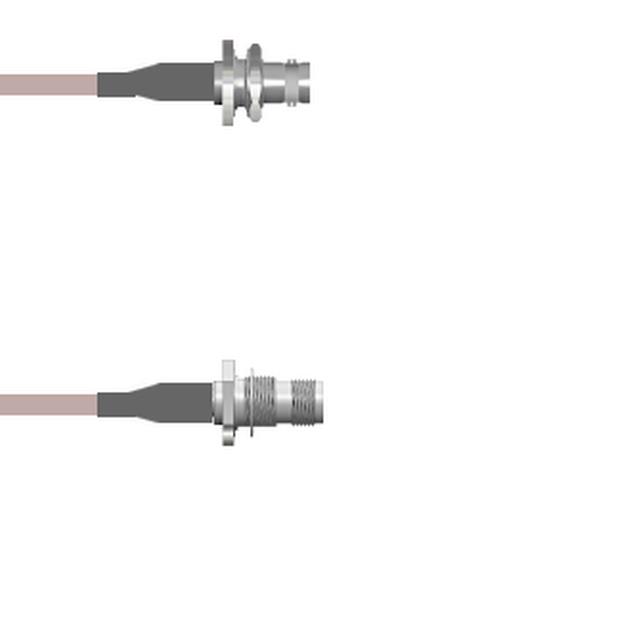

COAX CABLE BNC TO TNC 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0A04O000H072i

Active

Amphenol Custom Cable

COAX CABLE BNC TO TNC 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0A04O000H072i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0A04O0 Series

Part	Cable Type	Length	Length	Length	2nd Connector Mounting Type	1st Connector	Color	2nd Connector	2nd Connector Mounting Feature	1st Contact Gender	2nd Contact Gender	1st Connector Mounting Feature	Features	Overall Impedance	Style	1st Connector Mounting Type	Frequency - Max [Max]	Length [x]	Length [x]
Amphenol Custom Cable Q-0A04O000H084i	RG-142	84 in	2.1 m	7 ft	Panel Mount	BNC Jack	Copper	TNC Jack	Bulkhead - Front Side Nut	Female	Female	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC to TNC	Panel Mount	4 GHz
Amphenol Custom Cable Q-0A04O000H.75M	RG-142	29.53 "	750 mm		Panel Mount	BNC Jack	Copper	TNC Jack	Bulkhead - Front Side Nut	Female	Female	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC to TNC	Panel Mount	4 GHz
Amphenol Custom Cable Q-0A04O000H024i	RG-142	24 "	609.6 mm		Panel Mount	BNC Jack	Copper	TNC Jack	Bulkhead - Front Side Nut	Female	Female	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC to TNC	Panel Mount	4 GHz
Amphenol Custom Cable Q-0A04O000H.25M	RG-142				Panel Mount	BNC Jack	Copper	TNC Jack	Bulkhead - Front Side Nut	Female	Female	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC to TNC	Panel Mount	4 GHz	9.843 "	250 mm
Amphenol Custom Cable Q-0A04O000H036i	RG-142	36 in	91.44 cm		Panel Mount	BNC Jack	Copper	TNC Jack	Bulkhead - Front Side Nut	Female	Female	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC to TNC	Panel Mount	4 GHz
Amphenol Custom Cable Q-0A04O000H001M	RG-142	39.4 in	1 m	3.3 ft	Panel Mount	BNC Jack	Copper	TNC Jack	Bulkhead - Front Side Nut	Female	Female	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC to TNC	Panel Mount	4 GHz
Amphenol Custom Cable Q-0A04O000H0.5M	RG-142	19.69 "	50 cm		Panel Mount	BNC Jack	Copper	TNC Jack	Bulkhead - Front Side Nut	Female	Female	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC to TNC	Panel Mount	4 GHz
Amphenol Custom Cable Q-0A04O000H072i	RG-142	72 in	1.8 m	6 ft	Panel Mount	BNC Jack	Copper	TNC Jack	Bulkhead - Front Side Nut	Female	Female	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC to TNC	Panel Mount	4 GHz
Amphenol Custom Cable Q-0A04O000H003M	RG-142	118.1 in	3 m	9.8 '	Panel Mount	BNC Jack	Copper	TNC Jack	Bulkhead - Front Side Nut	Female	Female	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC to TNC	Panel Mount	4 GHz
Amphenol Custom Cable Q-0A04O000H1.5M	RG-142	59.1 in	1.5 m	4.9 ft	Panel Mount	BNC Jack	Copper	TNC Jack	Bulkhead - Front Side Nut	Female	Female	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC to TNC	Panel Mount	4 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 150.02
		25	$ 147.09
		50	$ 144.16
		100	$ 141.23
		250	$ 138.30

Description

General part information

Q-0A04O0 Series

Cable Assembly Coaxial BNC to TNC RG-142 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
