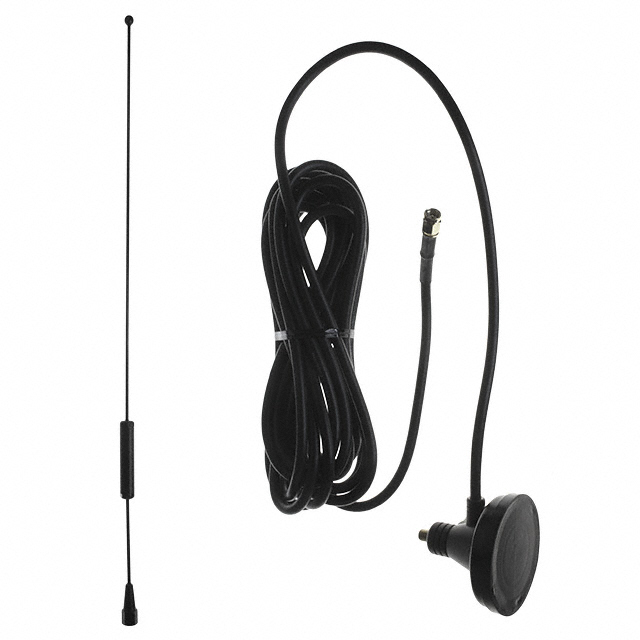

W522M2-157-AM-AMPS/PCS
ActiveNearson Inc.
RF ANT 850MHZ/1.9GHZ WHIP STR
Deep-Dive with AI
Search across all available documentation for this part.
W522M2-157-AM-AMPS/PCS
ActiveNearson Inc.
RF ANT 850MHZ/1.9GHZ WHIP STR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | W522M2-157-AM-AMPS/PCS |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | AMPS, PCS |
| Features | Cable - 4m |
| Frequency (Center/Band) | 850 MHz, 1.9 GHz |
| Frequency Range [Max] | 896 MHz, 1.99 GHz |
| Frequency Range [Min] | 824 MHz, 1.85 GHz |
| Height (Max) | 362 mm |
| Height (Max) [Max] | 14.252 in |
| Ingress Protection | IP65 |
| Mounting Type | Magnetic |
| Number of Bands | 2 |
| RF Family/Standard | General ISM, Cellular |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.86 | |
| 10 | $ 21.31 | |||
Description
General part information
W522M2 Series
RF ANTENNA AMPS, PCS Whip, Straight SMA Male Magnetic
Documents
Technical documentation and resources
No documents available
