PDSH06-5,08
ActiveTE Connectivity Raychem Cable Protection
CONN TERM BLK 12POS 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
PDSH06-5,08
ActiveTE Connectivity Raychem Cable Protection
CONN TERM BLK 12POS 5.08MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PDSH06-5,08 |
|---|---|
| Color | Green |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.161 in |
| Contact Tail Length | 4.1 mm |
| Current - IEC | 12 A |
| Current - UL | 12 A |
| Features | Interlocking (Side) |
| Header Orientation | 90°, Right Angle |
| Housing Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 2 |
| Number of Positions | 12 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Positions Per Level | 6 |
| Termination Style | Solder |
| Type | Header, Male Pins, Shrouded (2 Side) |
| Voltage - IEC | 250 V |
| Voltage - UL | 300 V |
PDSH06 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Tail Length | Contact Tail Length | Features | Type | Header Orientation | Current - IEC | Pitch [x] | Pitch [x] | Voltage - IEC | Current - UL | Contact Mating Finish | Voltage - UL | Termination Style | Material Flammability Rating | Positions Per Level | Color | Mounting Type | Number of Levels | Number of Positions | Contact Material | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | -30 ░C | 105 ░C | 0.161 in | 4.1 mm | Interlocking (Side) | Header Male Pins Shrouded (2 Side) | 90° Right Angle | 12 A | 0.2 in | 5.08 mm | 250 V | 12 A | Tin | 300 V | Solder | UL94 V-0 | 6 | Green | Through Hole | 2 | 12 | Copper Alloy | Polyamide (PA) Nylon |
Altech Corporation | -30 ░C | 105 ░C | 0.161 in | 4.1 mm | Interlocking (Side) | Header Male Pins Shrouded (2 Side) | 90° Right Angle | 12 A | 0.2 in | 5.08 mm | 250 V | 12 A | Tin | 300 V | Solder | UL94 V-0 | 6 | Green | Through Hole | 2 | 12 | Copper Alloy | Polyamide (PA) Nylon |
Altech Corporation |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.23 | |
| 10 | $ 3.69 | |||
| 25 | $ 3.39 | |||
| 50 | $ 3.22 | |||
| 100 | $ 3.10 | |||
| 250 | $ 2.98 | |||
| 500 | $ 2.92 | |||
| 1000 | $ 2.87 | |||
Description
General part information
PDSH06 Series

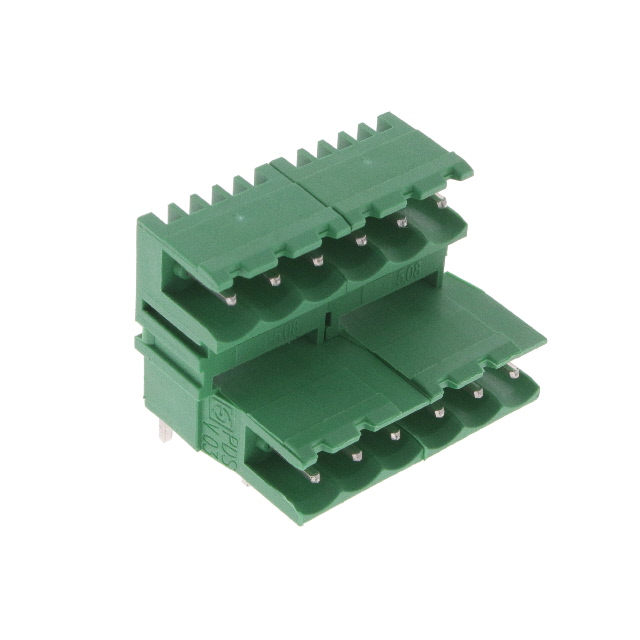

12 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
