333-070-560-202

Active

EDAC Inc.

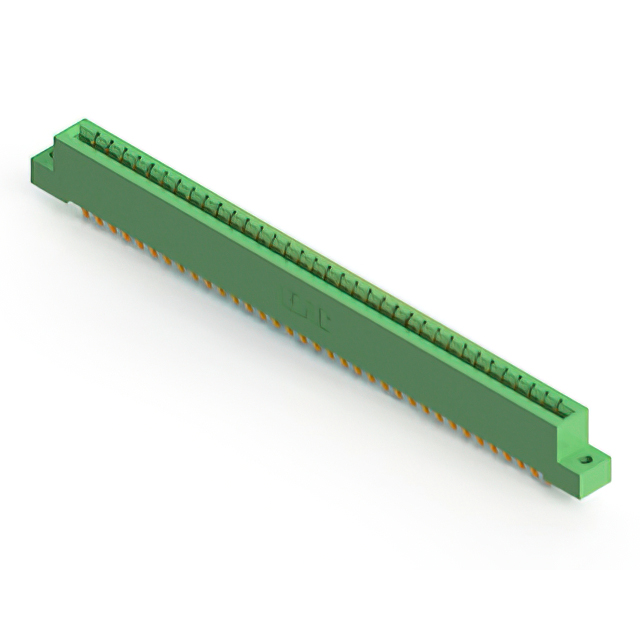

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 70 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

333-070-560-202

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 70 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	333-070-560-202

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	70
Number of Positions/Bay/Row [custom]	35
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

333-070 Series

...

Part	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature	Flange Feature	Flange Feature	Read Out	Termination	Contact Material	Material - Insulation	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Color	Pitch [x]	Pitch [x]	Termination Rows	Number of Rows	Card Type	Contact Finish	Contact Type	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 333-070-559-812	70	1.37 mm	0.054 "	1.78 mm	0.07 in	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Dual	Solder	Copper Alloy	Polyester Thermoplastic	Through Hole Right Angle	10 Áin	0.25 Ám	Green	0.156 in	3.96 mm	2	2	Non Specified - Dual Edge	Gold	Cantilever	Female	-40 °C	105 ░C	35
EDAC Inc. 333-070-560-202	70	1.37 mm	0.054 "	1.78 mm	0.07 in	Flush Mount Top Opening Unthreaded			Dual	Solder	Copper Alloy	Polyester Thermoplastic	Board Edge Straddle Mount	10 Áin	0.25 Ám	Green	0.156 in	3.96 mm	2	2	Non Specified - Dual Edge	Gold	Cantilever	Female	-40 °C	105 ░C	35	3.25 mm	0.128 "	Card Extender
EDAC Inc. 333-070-544-208	70	1.37 mm	0.054 "	1.78 mm	0.07 in	4-40 Flush Mount Threaded Insert Top Opening			Dual	Wire Wrap	Copper Alloy	Polyester Thermoplastic	Through Hole	10 Áin	0.25 Ám	Green	0.156 in	3.96 mm	2	2	Non Specified - Dual Edge	Gold	Cantilever	Female	-40 °C	105 ░C	35
EDAC Inc. 333-070-560-803	70	1.37 mm	0.054 "	1.78 mm	0.07 in	Floating Bobbin Top Mount Opening			Dual	Solder	Copper Alloy	Polyester Thermoplastic	Board Edge Straddle Mount	10 Áin	0.25 Ám	Green	0.156 in	3.96 mm	2	2	Non Specified - Dual Edge	Gold	Cantilever	Female	-40 °C	105 ░C	35	2.95 mm	0.116 in	Card Extender
EDAC Inc. 333-070-558-804	70	1.37 mm	0.054 "	1.78 mm	0.07 in	Top Mount Opening Unthreaded			Dual	Solder	Copper Alloy	Polyester Thermoplastic	Through Hole Right Angle	10 Áin	0.25 Ám	Green	0.156 in	3.96 mm	2	2	Non Specified - Dual Edge	Gold	Cantilever	Female	-40 °C	105 ░C	35	3.96 mm	0.156 in
EDAC Inc. 333-070-542-803	70	1.37 mm	0.054 "	1.78 mm	0.07 in	Floating Bobbin Top Mount Opening			Dual	Wire Wrap	Copper Alloy	Polyester Thermoplastic	Through Hole	10 Áin	0.25 Ám	Green	0.156 in	3.96 mm	2	2	Non Specified - Dual Edge	Gold	Cantilever	Female	-40 °C	105 ░C	35	2.95 mm	0.116 in
EDAC Inc. 333-070-540-201	70	1.37 mm	0.054 "	1.78 mm	0.07 in				Dual	Wire Wrap	Copper Alloy	Polyester Thermoplastic	Through Hole	10 Áin	0.25 Ám	Green	0.156 in	3.96 mm	2	2	Non Specified - Dual Edge	Gold	Cantilever	Female	-40 °C	105 ░C	35
EDAC Inc. 333-070-541-204	70	1.37 mm	0.054 "	1.78 mm	0.07 in	Flush Mount Top Opening Unthreaded			Dual	Wire Wrap	Copper Alloy	Polyester Thermoplastic	Through Hole	10 Áin	0.25 Ám	Green	0.156 in	3.96 mm	2	2	Non Specified - Dual Edge	Gold	Cantilever	Female	-40 °C	105 ░C	35	3.96 mm	0.156 in
EDAC Inc. 333-070-524-802	70	1.37 mm	0.054 "	1.78 mm	0.07 in		3.25 mm	0.128 in	Dual	Solder	Copper Alloy	Polyester Thermoplastic	Through Hole	10 Áin	0.25 Ám	Green	0.156 in	3.96 mm	2	2	Non Specified - Dual Edge	Gold	Cantilever	Female	-40 °C	105 ░C	35
EDAC Inc. 333-070-521-808	70	1.37 mm	0.054 "	1.78 mm	0.07 in	4-40 Threaded Insert Top Mount Opening			Dual	Solder	Copper Alloy	Polyester Thermoplastic	Through Hole	10 Áin	0.25 Ám	Green	0.156 in	3.96 mm	2	2	Non Specified - Dual Edge	Gold	Cantilever	Female	-40 °C	105 ░C	35

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 12.74
LCSC	Piece	1	$ 8.05
		200	$ 3.12
		500	$ 3.01
		1000	$ 2.95
Newark	Each	1	$ 11.76
		100	$ 8.52
		250	$ 7.28
		500	$ 6.71
		1000	$ 5.75

Description

General part information

333-070 Series

70 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green

Documents

Technical documentation and resources

Datasheet

Drawing EN

Datasheet

Enhanced Product Overview EN

Datasheet
