TCK128BG,LF

Active

Toshiba Semiconductor and Storage

LOAD SWITCH IC, V=1.0V-5.5V, IOU

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

LOAD SWITCH IC, V=1.0V-5.5V, IOU

Technical Specifications

Parameters and characteristics for this part

Specification	TCK128BG,LF

Current - Output (Max) [Max]	1 A
Features	Slew Rate Controlled, Load Discharge
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	P-Channel

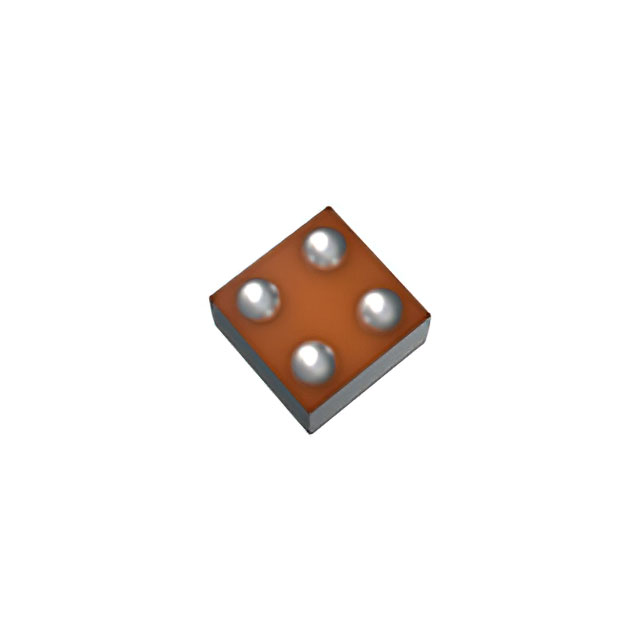

Package / Case	CSPBGA, 4-XFBGA
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	343 mOhm
Supplier Device Package	4-WCSPG (0.65x0.65)
Switch Type	General Purpose
Voltage - Load [Max]	5.5 V
Voltage - Load [Min]	1 V
Voltage - Supply (Vcc/Vdd)	False

Part	Current - Output (Max) [Max]	Output Configuration	Voltage - Supply (Vcc/Vdd)	Interface	Rds On (Typ)	Mounting Type	Features	Input Type	Output Type	Voltage - Load [Max]	Voltage - Load [Min]	Switch Type	Ratio - Input:Output [custom]	Package / Case	Number of Outputs	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]
Toshiba Semiconductor and Storage TCK128BG,LF	1 A	High Side		On/Off	343 mOhm	Surface Mount	Load Discharge Slew Rate Controlled	Non-Inverting	P-Channel	5.5 V	1 V	General Purpose	1:1	4-XFBGA CSPBGA	1	4-WCSPG (0.65x0.65)	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Switch/Driver 1:1 P-Channel 1A 4-WCSPG (0.65x0.65)
