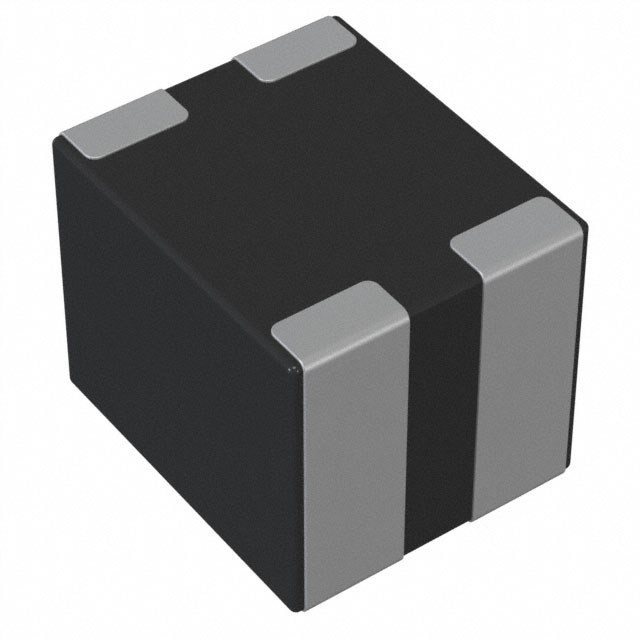

DLP11SN161SL2L
ObsoleteMurata Power Solutions Inc.
CMC 120MA 2LN 160 OHM SMD
Deep-Dive with AI
DocumentsDLx Series Datasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DLP11SN161SL2L |
|---|---|
| Current Rating (Max) [Max] | 120 mA |
| DC Resistance (DCR) (Max) [Max] | 3.38 Ohm |
| Height (Max) [Max] | 0.036 in |
| Height (Max) [Max] | 0.92 mm |
| Impedance @ Frequency | 160 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0504 (1210 Metric) |
| Package / Case | 4 Lead |
| Voltage Rating - DC | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.37 | |
| 10 | $ 0.31 | |||
| 25 | $ 0.29 | |||
| 50 | $ 0.26 | |||
| Digi-Reel® | 1 | $ 0.37 | ||
| 10 | $ 0.31 | |||
| 25 | $ 0.29 | |||
| 50 | $ 0.26 | |||
| Tape & Reel (TR) | 3000 | $ 0.16 | ||
Description
General part information
DLP11SN Series
2 Line Common Mode Choke Surface Mount 160 Ohms @ 100 MHz 120mA DCR 3.38Ohm
