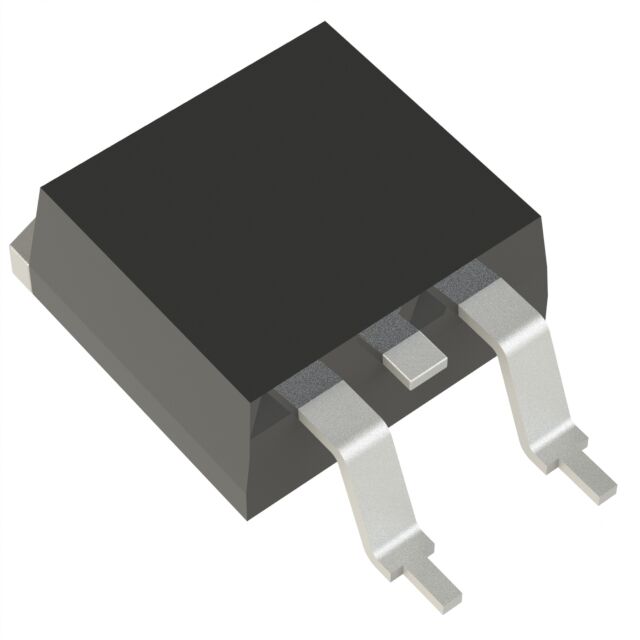

DPG30C200PC-TUB

Active

IXYS

DIODE ARRAY GP 200V 15A TO263

Search across all available documentation for this part.

Active

IXYS

DIODE ARRAY GP 200V 15A TO263

Technical Specifications

Parameters and characteristics for this part

Specification	DPG30C200PC-TUB

Current - Average Rectified (Io) (per Diode)	15 A
Current - Reverse Leakage @ Vr	1 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Reverse Recovery Time (trr)	35 ns
Speed	200 mA, 500 ns
Supplier Device Package	TO-263 (D2PAK)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	1.26 V

Part	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io) (per Diode)	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Reverse Recovery Time (trr)	Technology	Diode Configuration	Speed
IXYS DPG30C200PC-TUB	1.26 V	TO-263 (D2PAK)	1 µA	15 A	Surface Mount	200 V	175 ░C	-55 C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	35 ns	Standard	1 Pair Common Cathode	200 mA 500 ns
IXYS DPG30C200HB	1.25 V	TO-247AD	1 µA	15 A	Through Hole	200 V	175 ░C	-55 C	TO-247-3	35 ns	Standard	1 Pair Common Cathode	200 mA 500 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Common Cathode 200 V 15A Surface Mount TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
