Technical Specifications
Parameters and characteristics for this part
| Specification | 0298125.ZXEH-UL |
|---|---|
| Breaking Capacity @ Rated Voltage | 2 kA |
| Current Rating (Amps) | 125 A |
| Fuse Type | Automotive |
| Melting I²t | 57800 I²t |
| Mounting Type | Bolt Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Auto Link |
| Size / Dimension [x] | 29.2 mm |
| Size / Dimension [x] | 1.149 in |
| Size / Dimension [y] | 19.05 mm |
| Size / Dimension [y] | 0.75 in |
| Size / Dimension [z] | 0.39 in |
| Size / Dimension [z] | 9.9 mm |
| Voltage Rating - DC | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

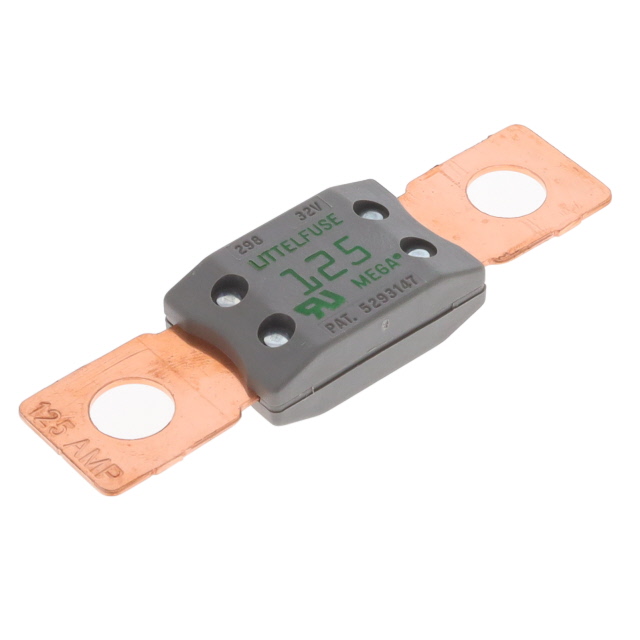

0298125.ZXEH-UL Series
This 125 A UL Recognized MEGA® fuse usually protects batteries, alternators, and heavy gauge cables. The bolt-down automotive fuse employs diffusion pill technology to deliver predictable time-delayed performance.
