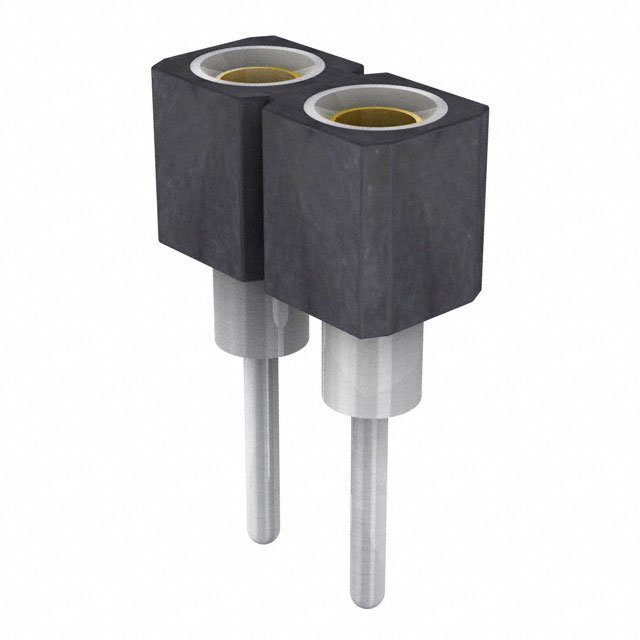

831-83-002-10-001101

Active

PRECI-DIP SA

CONN SOCKET 2POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

831-83-002-10-001101

Active

PRECI-DIP SA

CONN SOCKET 2POS 0.079 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	831-83-002-10-001101

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.165 in
Insulation Height [z]	4.2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Termination	Solder

831-83 Series

...

Part	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Fastening Type	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Number of Rows	Number of Positions	Contact Shape	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Type	Termination	Contact Finish - Mating	Mounting Type	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]
PRECI-DIP SA 831-83-004-64-001101	UL94 V-0	0.165 in	4.2 mm	Tin	Push-Pull	Black	29.5 Áin	0.75 Ám	2.5 mm	0.098 in	All	1	4	Circular	3 A	-55 °C	125 °C	Beryllium Copper	Female Socket	Press-Fit Solder	Gold	Through Hole	Socket	0.079 in	2 mm
PRECI-DIP SA 831-83-014-40-001191	UL94 V-0			Tin	Push-Pull	Black	29.5 Áin	0.75 Ám			All	1	14	Circular	3 A	-55 °C	125 °C	Beryllium Copper	Female Socket	Solder	Gold	Surface Mount Right Angle	Socket	0.079 in	2 mm	0.087 "	2.2 mm
PRECI-DIP SA 831-83-041-40-001101	UL94 V-0			Tin	Push-Pull	Black	29.5 Áin	0.75 Ám			All	1	41	Circular	3 A	-55 °C	125 °C	Beryllium Copper	Female Socket	Solder	Gold	Surface Mount Right Angle	Socket	0.079 in	2 mm	0.087 "	2.2 mm
PRECI-DIP SA 831-83-036-20-001101	UL94 V-0			Tin	Push-Pull	Black	29.5 Áin	0.75 Ám	3.2 mm		All	1	36	Circular	3 A	-55 °C	125 °C	Beryllium Copper	Female Socket	Solder	Gold	Through Hole Right Angle	Socket	0.079 in	2 mm	0.087 "	2.2 mm	0.126 in
PRECI-DIP SA 831-83-002-10-001101	UL94 V-0	0.165 in	4.2 mm	Tin	Push-Pull	Black	29.5 Áin	0.75 Ám			All	1	2	Circular	3 A	-55 °C	125 °C	Beryllium Copper	Female Socket	Solder	Gold	Through Hole	Socket	0.079 in	2 mm			0.125 in	3.18 mm
PRECI-DIP SA 831-83-033-20-001101	UL94 V-0			Tin	Push-Pull	Black	29.5 Áin	0.75 Ám	3.2 mm		All	1	33	Circular	3 A	-55 °C	125 °C	Beryllium Copper	Female Socket	Solder	Gold	Through Hole Right Angle	Socket	0.079 in	2 mm	0.087 "	2.2 mm	0.126 in
PRECI-DIP SA 831-83-015-40-001101	UL94 V-0			Tin	Push-Pull	Black	29.5 Áin	0.75 Ám			All	1	15	Circular	3 A	-55 °C	125 °C	Beryllium Copper	Female Socket	Solder	Gold	Surface Mount Right Angle	Socket	0.079 in	2 mm	0.087 "	2.2 mm
PRECI-DIP SA 831-83-044-40-001101	UL94 V-0			Tin	Push-Pull	Black	29.5 Áin	0.75 Ám			All	1	44	Circular	3 A	-55 °C	125 °C	Beryllium Copper	Female Socket	Solder	Gold	Surface Mount Right Angle	Socket	0.079 in	2 mm	0.087 "	2.2 mm
PRECI-DIP SA 831-83-038-10-001101	UL94 V-0	0.165 in	4.2 mm	Tin	Push-Pull	Black	29.5 Áin	0.75 Ám			All	1	38	Circular	3 A	-55 °C	125 °C	Beryllium Copper	Female Socket	Solder	Gold	Through Hole	Socket	0.079 in	2 mm			0.125 in	3.18 mm
PRECI-DIP SA 831-83-012-40-001191	UL94 V-0			Tin	Push-Pull	Black	29.5 Áin	0.75 Ám			All	1	12	Circular	3 A	-55 °C	125 °C	Beryllium Copper	Female Socket	Solder	Gold	Surface Mount Right Angle	Socket	0.079 in	2 mm	0.087 "	2.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.47
		10	$ 0.41
		100	$ 0.34
		500	$ 0.29
		1000	$ 0.24
		5000	$ 0.21
		10000	$ 0.20

Description

General part information

831-83 Series

2 Position Socket Connector 0.079" (2.00mm) Through Hole Gold

Documents

Technical documentation and resources

No documents available
