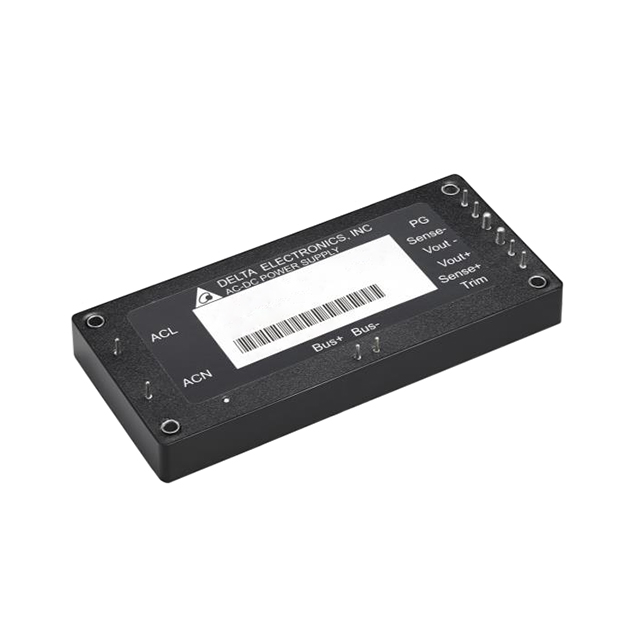

PACSR12025S

Obsolete

Delta Electronics

AC/DC CONVERTER 12V 300W

Search across all available documentation for this part.

Obsolete

Delta Electronics

AC/DC CONVERTER 12V 300W

Technical Specifications

Parameters and characteristics for this part

Specification	PACSR12025S

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max) [Max]	25 A
Efficiency	91.5 %
Features	Baseplate, Universal Input, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-DIP Module
Power (Watts)	300 W
Size / Dimension [x]	110.7 mm
Size / Dimension [x]	4.36 in
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	13.7 mm
Size / Dimension [z]	0.54 in
Type	Enclosed
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Output 1	12 V
Weight	240 g
Weight	0.529 lb

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Number of Outputs	Applications	Current - Output (Max) [Max]	Mounting Type	Power (Watts)	Voltage - Output 1	Type	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Features	Package / Case	Efficiency
Delta Electronics PACSR12025S	13.7 mm	50.8 mm	0.54 in	110.7 mm	2 in	4.36 in	100 °C	-40 °C	240 g	0.529 lb	1	ITE (Commercial)	25 A	Through Hole	300 W	12 V	Enclosed	85 VAC	265 VAC	CE	Adjustable Output Baseplate Remote Sense Universal Input	10-DIP Module	91.5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 12V 25A 85 ~ 265 VAC Input
