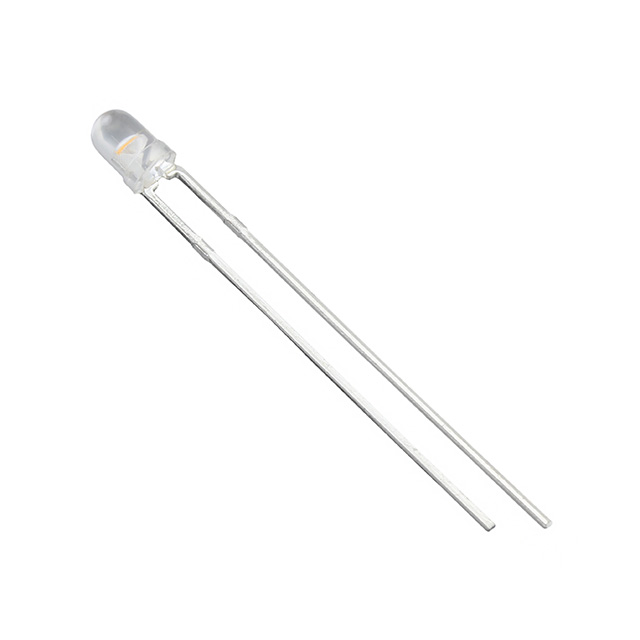

WP7104VRVCW/A

Active

Kingbright

LED PINK DIFFUSED T-1 T/H

Search across all available documentation for this part.

Active

Kingbright

LED PINK DIFFUSED T-1 T/H

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Orientation	Wavelength	Type	Viewing Angle	Radiant Intensity (Ie) Min @ If	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Viewing Angle [custom]	Color	Voltage - Forward (Vf) (Typ)	Lens Transparency	Lens Style	Supplier Device Package	Size / Dimension [diameter]	Configuration	Current - Test	Lens Color	Millicandela Rating	Lens Size	Lens Size	Height (Max) [Max] [z]	Wavelength - Peak	Lens Type
Kingbright WP7104F3C	Through Hole	Top View	940 nm	Infrared (IR)	34 °	7 mW/sr	50 mA	85 °C	-40 °C	T-1
Kingbright WP7104VRVCW/A	Through Hole									Radial	40 °	Pink	3.3 V	Diffused	Round with Domed Top	T-1 (3mm)	2.9 mm	Standard	20 mA	White	1000 mcd	3 mm	T-1	5.9 mm
Kingbright WP7104ALUP/2GD-0L	Surface Mount Right Angle										40 °	Green (x 2)			Round with Domed Top			2 High			22.5 mcd	3 mm	T-1		568 nm	Diffused Tinted
Kingbright WP7104PR51C/A	Through Hole				34 °					Radial		Cyan	3.3 V	Clear	Round with Domed Top	T-1	2.9 mm	Standard	20 mA	Colorless	1600 mcd	3 mm	T-1	5.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pink LED Indication - Discrete 3.3V Radial
