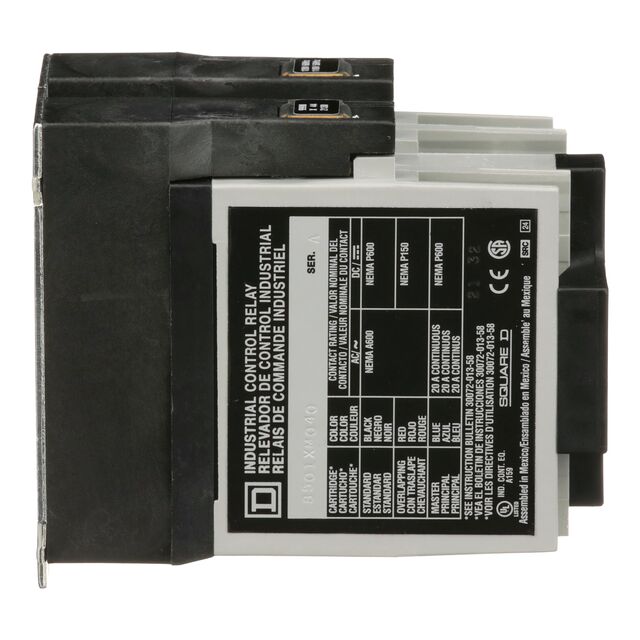

8501XMO40V02

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 600VAC 20AMP NEMA -OPTIONS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 600VAC 20AMP NEMA -OPTIONS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Operate Time	Mounting Type	Relay Type	Contact Form	Load - Max Switching	Coil Type	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Coil Voltage	Termination Style	Release Time	Switching Voltage	Contact Rating (Current)
SQUARE D BY SCHNEIDER ELECTRIC 8501XMO40V02	15 ms	DIN Rail	General Purpose	4PST-NO (4 Form A)	6000 VA	Non Latching	-40 °C	71 °C	CSA UL	120 VAC	Screw Terminal	16 ms	600 VAC	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay 4PST-NO (4 Form A) 120VAC Coil DIN Rail
