CT2228-2

Active

Cal Test Electronics

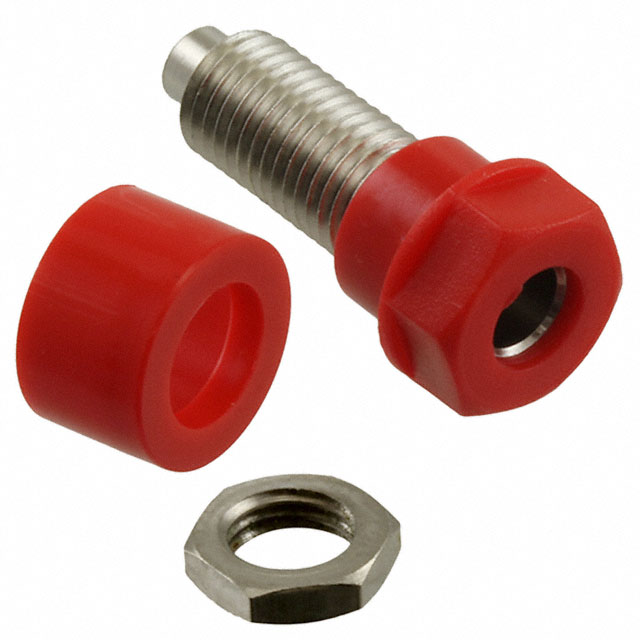

CONN BANANA JACK SOLDER RED

Search across all available documentation for this part.

Active

Cal Test Electronics

CONN BANANA JACK SOLDER RED

Technical Specifications

Parameters and characteristics for this part

Part	Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Gender	Color	Body Material	Contact Material	Insulation	Termination	Plug/Mating Plug Diameter
Cal Test Electronics CT2228-6	Banana Jack	-20 C	80 C	Nickel	Female	Blue	Nylon Polyamide (PA)	Brass	Mating End Insulated	Solder	Standard Banana
Cal Test Electronics CT2228-2	Banana Jack	-20 C	80 C	Nickel	Female	Red	Nylon Polyamide (PA)	Brass	Mating End Insulated	Solder	Standard Banana
Cal Test Electronics CT2228-9	Banana Jack	-20 C	80 C	Nickel	Female	White	Nylon Polyamide (PA)	Brass	Mating End Insulated	Solder	Standard Banana

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.95

General part information

Banana Jack Connector Standard Banana Solder Red
