ECLAMP2376P.TCT

Active

Semtech Corporation

FILTER RC(PI) 100 OHM/11PF SMD

Search across all available documentation for this part.

Active

Semtech Corporation

FILTER RC(PI) 100 OHM/11PF SMD

Technical Specifications

Parameters and characteristics for this part

Specification	ECLAMP2376P.TCT

Applications	Data Lines for Mobile Devices
Attenuation Value	30 dB
ESD Protection	True
Filter Order	2nd
Height [z]	0.026 in
Height [z]	0.65 mm
Mounting Type	Surface Mount
Number of Channels [custom]	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

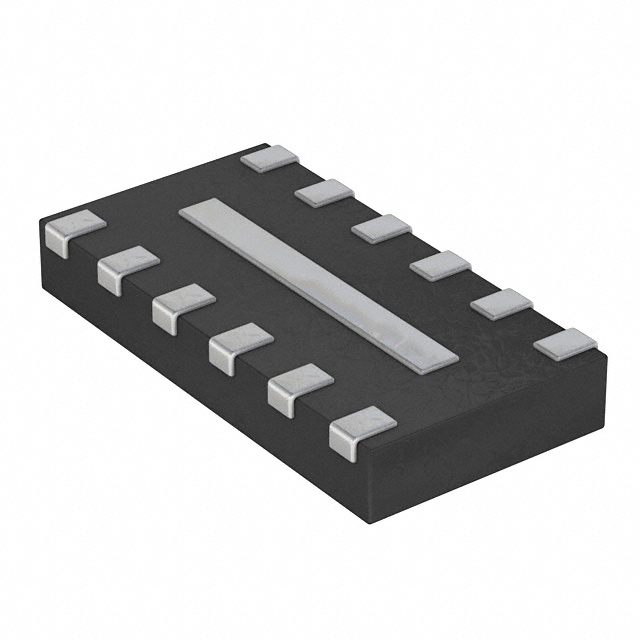

Package / Case	12-UFDFN Exposed Pad
Resistance - Channel (Ohms)	100 Ohms
Size / Dimension [x]	3 mm, 0.118 "
Size / Dimension [y]	0.063 in, 1.6 mm
Technology	RC (Pi)
Type	Low Pass
Values	11 pF, 100 Ohms

Part	ESD Protection	Filter Order	Number of Channels [custom]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Resistance - Channel (Ohms)	Technology	Attenuation Value	Values	Package / Case	Mounting Type	Height [z]	Height [z]	Type
Semtech Corporation ECLAMP2376P.TCT		2nd	6	Data Lines for Mobile Devices	85 °C	-40 °C	0.118 " 3 mm	0.063 in 1.6 mm	100 Ohms	RC (Pi)	30 dB	11 pF 100 Ohms	12-UFDFN Exposed Pad	Surface Mount	0.026 in	0.65 mm	Low Pass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RC (Pi) EMI Filter 2nd Order Low Pass 6 Channel R = 100Ohms, C = 11pF 12-UFDFN Exposed Pad

Technical documentation and resources

No documents available
