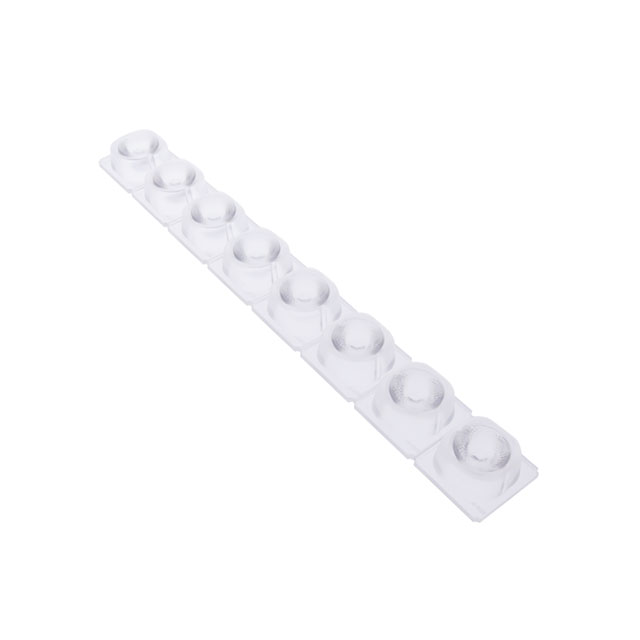

F15554_JENNY-8X1-40

Active

LEDiL

LENS RECTANG 1 POS 280 + 35MM (D) 15MM(H/ CARTON BOARD ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

LEDiL

LENS RECTANG 1 POS 280 + 35MM (D) 15MM(H/ CARTON BOARD ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	F15554_JENNY-8X1-40

Color	Clear
For Use With/Related Manufacturer	Osram, Lumileds, Cree, Nichia
Lens Size [x]	280 mm
Lens Size [y]	35 mm
Lens Style	Rectangle with Multiple Top
Material	Silicone
Mounting Type	Adhesive Tape
Number of LEDs	8
Optical Pattern	Medium
Type	Lens
Viewing Angle [Max]	45 °
Viewing Angle [Min]	36 °

Part	Material	Optical Pattern	Viewing Angle [Min]	Viewing Angle [Max]	Color	Lens Size [x]	Lens Size [y]	Number of LEDs	Lens Style	Mounting Type	Type	For Use With/Related Manufacturer
LEDiL F15554_JENNY-8X1-40	Silicone	Medium	36 °	45 °	Clear	280 mm	35 mm	8	Rectangle with Multiple Top	Adhesive Tape	Lens	Cree Lumileds Nichia Osram

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lens Clear 36° ~ 45° Medium Adhesive Tape
