0395145010

Active

Waldom

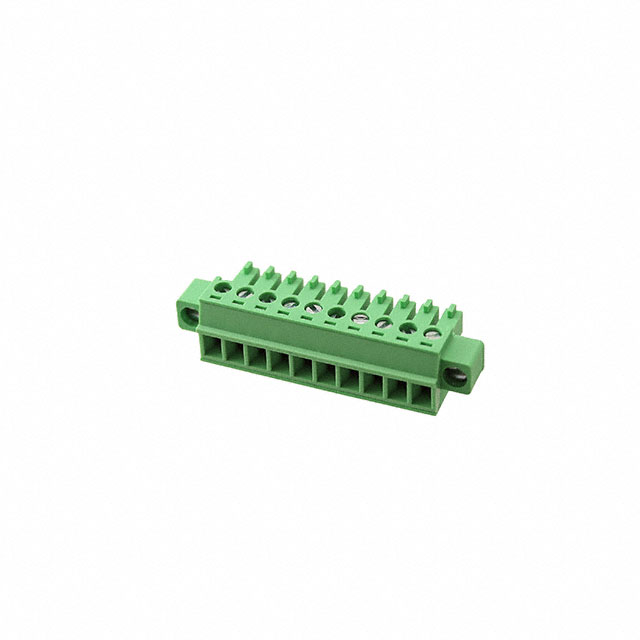

TERM BLOCK PLUG 10POS 3.81MM

Search across all available documentation for this part.

Active

Waldom

TERM BLOCK PLUG 10POS 3.81MM

Technical Specifications

Parameters and characteristics for this part

Specification	0395145010

Color	Green
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Current - UL	8 A
Features	Mating Flange
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	10
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	10
Screw Size	M2
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.23 Nm
Torque - Screw	2 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	16 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Positions Per Level	Color	Torque - Screw	Torque - Screw	Number of Positions	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Material	Type	Termination Style	Pitch [x]	Pitch [x]	Mounting Type	Current - UL	Features	Contact Mating Finish	Voltage - UL	Number of Levels	Screw Size
Waldom 0395145010	-40 °C	115 °C	UL94 V-0	10	Green	0.23 Nm	2 Lb-In	10	30 AWG	16 AWG	Phosphor Bronze	Plug Female Sockets	Screw - Rising Cage Clamp	0.15 in	3.81 mm	Free Hanging (In-Line)	8 A	Mating Flange	Tin	300 V	1	M2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 180° Free Hanging (In-Line)
