9SG1248P1G01

Obsolete

Sanyo Denki America Inc.

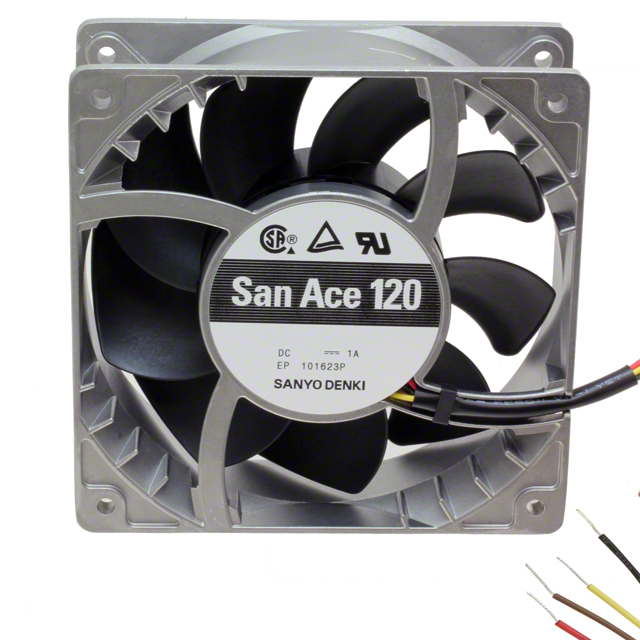

FAN AXIAL 119X38MM 48VDC WIRE

Search across all available documentation for this part.

Obsolete

Sanyo Denki America Inc.

FAN AXIAL 119X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	9SG1248P1G01

Air Flow	260 CFM
Air Flow	7.28 mł/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	1 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	64 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	48 W
RPM	6000 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	341.2 Pa
Static Pressure	1.37 in H2O
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	55.2 VDC
Voltage Range [Min]	40.8 VDC
Weight	0.882 lb
Weight	400.07 g
Width [y]	38 mm

Part	RPM	Termination	Air Flow	Air Flow	Noise	Size / Dimension [y]	Size / Dimension [x]	Material - Frame	Fan Type	Bearing Type	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Width [y]	Features	Static Pressure	Static Pressure	Weight	Weight	Power (Watts)	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated [custom]	Current Rating (Amps)	Material - Blade	Operating Temperature [Max]
Sanyo Denki America Inc. 9SG1248P1G01	6000 RPM	4 Wire Leads	260 CFM	7.28 mł/min	64 dB(A)	119 mm	119 mm	Aluminum	Tubeaxial	Ball	40000 Hrs	55.2 VDC	40.8 VDC	38 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	341.2 Pa	1.37 in H2O	0.882 lb	400.07 g	48 W	CSA TUV UL	-20 °C	70 °C	-20 C	70 °C	48 VDC	1 A	Plastic
Sanyo Denki America Inc. 9SG1248G102	6000 RPM	2 Wire Leads	260 CFM	7.28 mł/min	64 dB(A)	120 mm	120 mm	Aluminum	Tubeaxial	Ball	40000 Hrs	55.2 VDC	40.8 VDC	38 mm		341.2 Pa	1.37 in H2O	0.882 lb	400.07 g	48 W	CSA TUV UL	-10 °C		-10 °C	70 °C	48 VDC	1 A	Plastic	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Square - 119mm L x 119mm H Ball 260.0 CFM (7.28mł/min) 4 Wire Leads
