0022503085

Obsolete

Molex

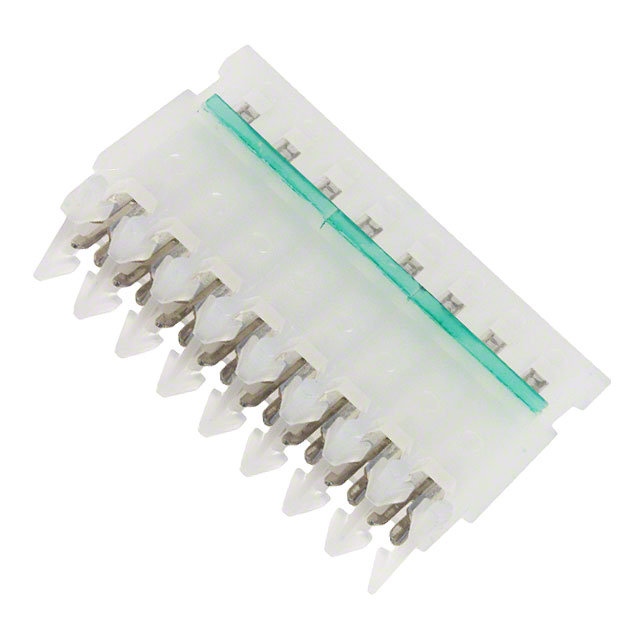

CONN RCPT 8POS IDC 24-26AWG TIN

Search across all available documentation for this part.

Obsolete

Molex

CONN RCPT 8POS IDC 24-26AWG TIN

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Contact Finish	Color	Wire Type	Contact Type	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Wire Gauge [Min]	Wire Gauge [Max]	Connector Type	Features	Number of Positions
Molex 0022503035	Free Hanging (In-Line)	Tin	Natural	Discrete	Female Socket	2.54 mm	0.1 in	1	2.54 µm	100 µin	IDC	24 AWG	26 AWG	Receptacle	Feed Through
Molex 0022503085	Free Hanging (In-Line)	Tin	Green	Discrete	Female Socket	2.54 mm	0.1 in	1	2.54 µm	100 µin	IDC	24 AWG	26 AWG	Receptacle	Feed Through	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 Position Rectangular Receptacle Connector IDC Tin 24-26 AWG

Technical documentation and resources

No documents available
