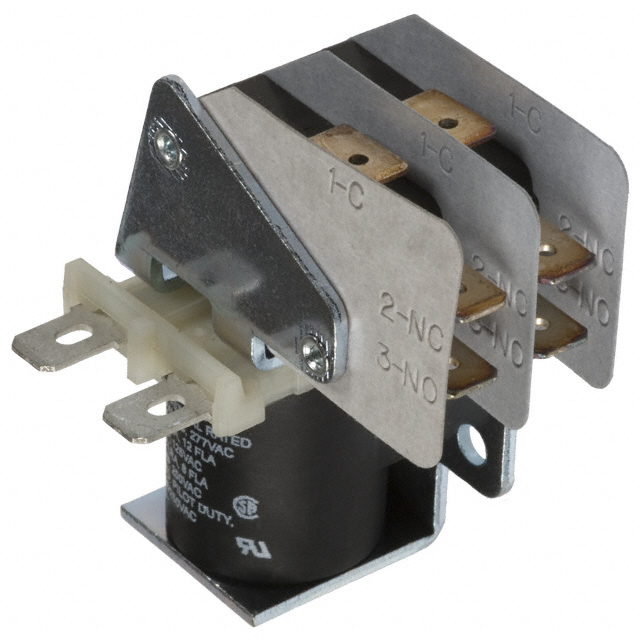

S87R11D2B1D1-24

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 20A 24V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 20A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Coil Type	Coil Current	Load - Max Switching	Coil Voltage	Contact Form	Switching Voltage [Max]	Coil Resistance	Must Operate Voltage	Relay Type	Coil Insulation	Approval Agency	Contact Rating (Current)	Mounting Type	Termination Style	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Potter & Brumfield Relays S87R11D2B1D1110	Non Latching	40 mA	5540 VA	110 VDC	DPDT (2 Form C)	277 VAC	2.75 kOhms	82.5 VDC	General Purpose	Class B	CSA UR	20 A	Chassis Mount	Quick Connect - 0.250" (6.3mm)	Silver Cadmium Oxide (AgCdO)	-10 °C	65 °C
TE Connectivity Potter & Brumfield Relays S87R11D2B1D1-24	Non Latching	188 mA	5540 VA	24 VDC	DPDT (2 Form C)	277 VAC	128 Ohms	18 VDC	General Purpose	Class B	CSA UR	20 A	Chassis Mount	Quick Connect - 0.250" (6.3mm)	Silver Cadmium Oxide (AgCdO)	-10 °C	65 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay DPDT (2 Form C) 24VDC Coil Chassis Mount
