867-22-002-70-501010

Active

Mill-Max Manufacturing Corp.

SPRING LOADED CONNECTOR WITH CRI

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

SPRING LOADED CONNECTOR WITH CRI

Technical Specifications

Parameters and characteristics for this part

Specification	867-22-002-70-501010

Cable Termination	Solder
Color	Black, Red, Individual
Connector Type	Socket to Individual Wire Leads
Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Length	1 ft
Length	304.8 mm
Number of Positions	2
Number of Rows	1
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Connector Type	Shielding	Number of Positions	Cable Termination	Number of Rows	Length	Length	Pitch - Connector	Pitch - Connector	Color	Contact Finish	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 867-22-002-70-501010	Socket to Individual Wire Leads	Unshielded	2	Solder	1	1 ft	304.8 mm	0.1 in	2.54 mm	Black Individual Red	Gold	0.51 µm	20 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

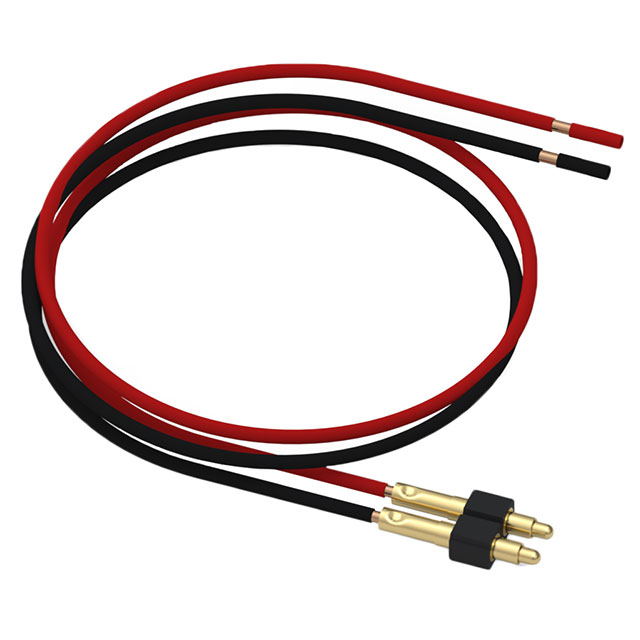

2 Position Cable Assembly Rectangular Socket to Individual Wire Leads 1.00' (304.80mm)

Technical documentation and resources

No documents available
