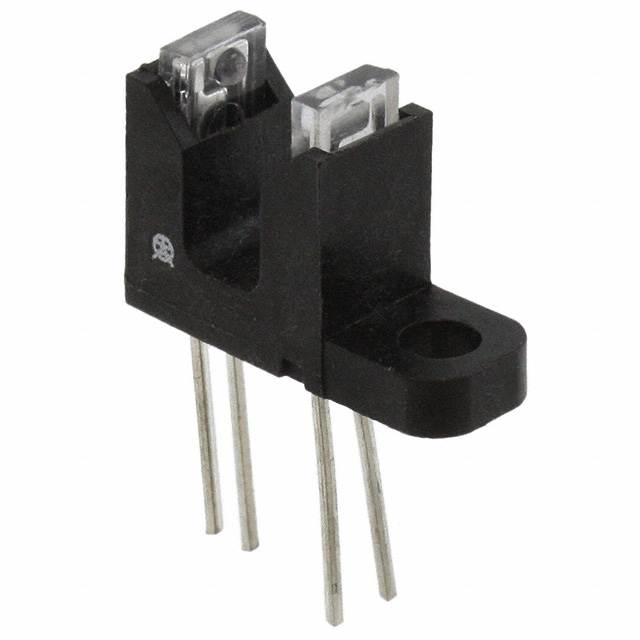

OPB825A

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRANS MODUL

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRANS MODUL

Technical Specifications

Parameters and characteristics for this part

Specification	OPB825A

Current - Collector (Ic) (Max) [Max]	30 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Phototransistor
Package / Case	Module, Slotted
Sensing Distance	4.06 mm
Sensing Distance	0.16 in
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Sensing Method	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Output Configuration	Package / Case	Current - DC Forward (If) (Max)	Sensing Distance	Sensing Distance	Current - Collector (Ic) (Max) [Max]
TT Electronics/Optek Technology OPB825A	Unamplified	30 V	Through-Beam	85 °C	-40 °C	Chassis Mount	Phototransistor	Module Slotted	50 mA	4.06 mm	0.16 in	30 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor Through-Beam 0.160" (4.06mm) Phototransistor Module, Slotted
