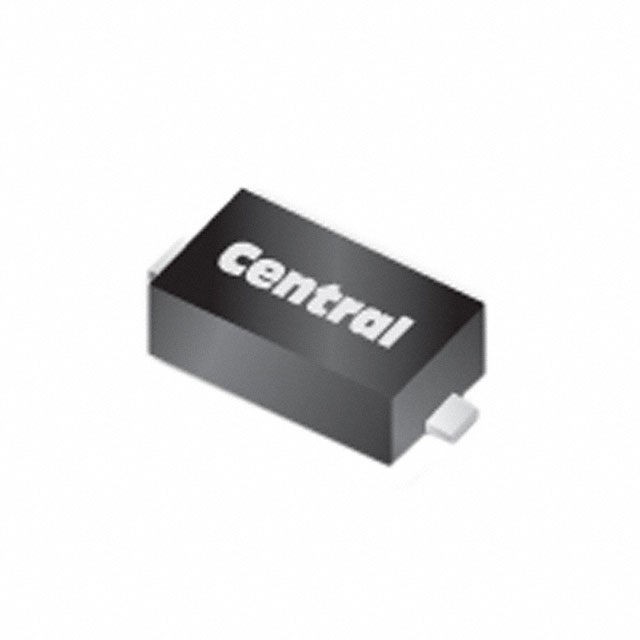

CMATVS3V3 TR PBFREE
ActiveCentral Semiconductor Corp
TVS DIODE 3.3VWM 11VC SOD923
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMATVS3V3 TR PBFREE
ActiveCentral Semiconductor Corp
TVS DIODE 3.3VWM 11VC SOD923
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMATVS3V3 TR PBFREE |
|---|---|
| Applications | General Purpose |
| Current - Peak Pulse (10/1000µs) | 7 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SOD-923 |
| Power - Peak Pulse | 80 W |
| Power Line Protection | False |
| Supplier Device Package | SOD-923 |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 5 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 11 V |
| Voltage - Reverse Standoff (Typ) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.82 | |
| 10 | $ 0.51 | |||
| 100 | $ 0.33 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.23 | |||
| 2000 | $ 0.20 | |||
| Digi-Reel® | 1 | $ 0.82 | ||
| 10 | $ 0.51 | |||
| 100 | $ 0.33 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.23 | |||
| 2000 | $ 0.20 | |||
| Tape & Reel (TR) | 8000 | $ 0.17 | ||
| 16000 | $ 0.16 | |||
| 24000 | $ 0.15 | |||
| 40000 | $ 0.15 | |||
Description
General part information
CMATVS3 Series
11V Clamp 7A (8/20µs) Ipp Tvs Diode Surface Mount SOD-923
