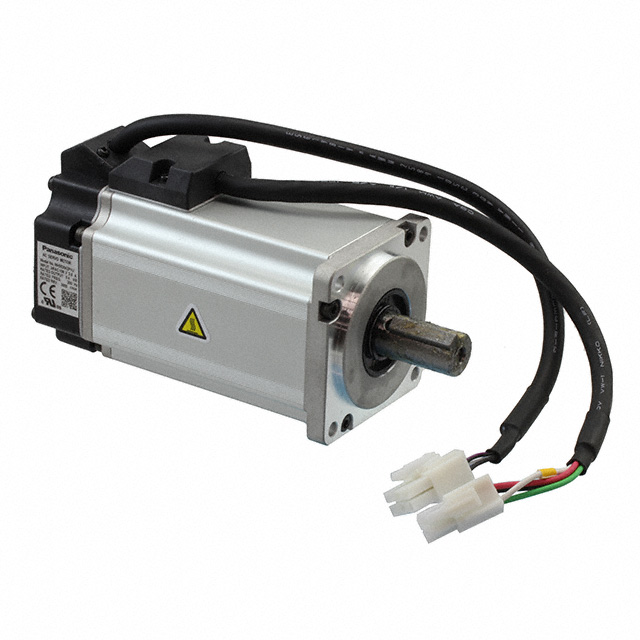

MHMD042P1U

Obsolete

Panasonic Industrial Automation Sales

SERVOMOTOR 3000 RPM 200V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MHMD042P1U

Obsolete

Panasonic Industrial Automation Sales

SERVOMOTOR 3000 RPM 200V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MHMD042P1U

Approval Agency	TUV, CE, CSA, UL, cULus
Diameter - Shaft [diameter]	14 mm
Diameter - Shaft [diameter]	0.551 in
Encoder Type	Incremental
Features	Key, Oil Seal
Function	Servomotor
Length - Shaft and Bearing [x]	30 mm
Length - Shaft and Bearing [x]	1.181 in
Mounting Hole Spacing	70 mm
Mounting Hole Spacing	2.756 in
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power - Rated	400 W
RPM	3000 RPM
Size / Dimension [x]	2.362 in
Size / Dimension [x]	60 mm
Size / Dimension [y]	2.362 in
Size / Dimension [y]	60 mm
Termination Style	Wire Leads
Torque - Max Momentary (oz-in / mNm)	538.1 oz-in
Torque - Max Momentary (oz-in / mNm)	3800 mNm
Torque - Rated (oz-in / mNm)	1300 mNm
Torque - Rated (oz-in / mNm)	184.1 oz-in
Type	AC Motor
Voltage - Rated	200 VAC
Weight	1.4 kg
Weight	3.1 lbs

MHMD042 Series

Part	Function	Weight	Weight	Power - Rated	Termination Style	Encoder Type	Operating Temperature [Max]	Mounting Hole Spacing	Mounting Hole Spacing	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Features	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	RPM	Voltage - Rated	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Type	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]
Panasonic Industrial Automation Sales MHMD042P1S	Servomotor	1.4 kg	3.1 lbs	400 W	Wire Leads	Incremental	40 °C	70 mm	2.756 in	2.362 in	2.362 in	60 mm	60 mm	CE CSA cULus TUV UL	Key	30 mm	1.181 in	538.1 oz-in	3800 mNm	3000 RPM	200 VAC	1300 mNm	184.1 oz-in	AC Motor	14 mm	0.551 in
Panasonic Industrial Automation Sales MHMD042S1T	Servomotor			400 W	Wire Leads	Absolute	40 °C	70 mm	2.756 in	2.362 in	2.362 in	60 mm	60 mm	CE CSA cULus TUV UL	Brake Key	30 mm	1.181 in	538.1 oz-in	3800 mNm	3000 RPM	200 VAC	1300 mNm	184.1 oz-in	AC Motor	14 mm	0.551 in
Panasonic Industrial Automation Sales MHMD042S1D	Servomotor			400 W	Wire Leads	Absolute	40 °C	70 mm	2.756 in	2.362 in	2.362 in	60 mm	60 mm	CE CSA cULus TUV UL	Brake Oil Seal	30 mm	1.181 in	538.1 oz-in	3800 mNm	3000 RPM	200 VAC	1300 mNm	184.1 oz-in	AC Motor	14 mm	0.551 in
Panasonic Industrial Automation Sales MHMD042P1U	Servomotor	1.4 kg	3.1 lbs	400 W	Wire Leads	Incremental	40 °C	70 mm	2.756 in	2.362 in	2.362 in	60 mm	60 mm	CE CSA cULus TUV UL	Key Oil Seal	30 mm	1.181 in	538.1 oz-in	3800 mNm	3000 RPM	200 VAC	1300 mNm	184.1 oz-in	AC Motor	14 mm	0.551 in
Panasonic Industrial Automation Sales MHMD042G1D	Servomotor			400 W	Wire Leads	Incremental	40 °C	70 mm	2.756 in	2.362 in	2.362 in	60 mm	60 mm	CE CSA cULus TUV UL	Brake Oil Seal	30 mm	1.181 in	538.1 oz-in	3800 mNm	3000 RPM	200 VAC	1300 mNm	184.1 oz-in	AC Motor	14 mm	0.551 in
Panasonic Industrial Automation Sales MHMD042G1V	Servomotor			400 W	Wire Leads	Incremental	40 °C	70 mm	2.756 in	2.362 in	2.362 in	60 mm	60 mm	CE CSA cULus TUV UL	Brake Key Oil Seal	30 mm	1.181 in	538.1 oz-in	3800 mNm	3000 RPM	200 VAC	1300 mNm	184.1 oz-in	AC Motor	14 mm	0.551 in
Panasonic Industrial Automation Sales MHMD042P1C	Servomotor	1.4 kg	3.1 lbs	400 W	Wire Leads	Incremental	40 °C	70 mm	2.756 in	2.362 in	2.362 in	60 mm	60 mm	CE CSA cULus TUV UL	Oil Seal	30 mm	1.181 in	538.1 oz-in	3800 mNm	3000 RPM	200 VAC	1300 mNm	184.1 oz-in	AC Motor	14 mm	0.551 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MHMD042 Series

AC Motor Servomotor 3000 RPM 400W Incremental 200VAC
