D01-9951242

Active

Harwin Inc.

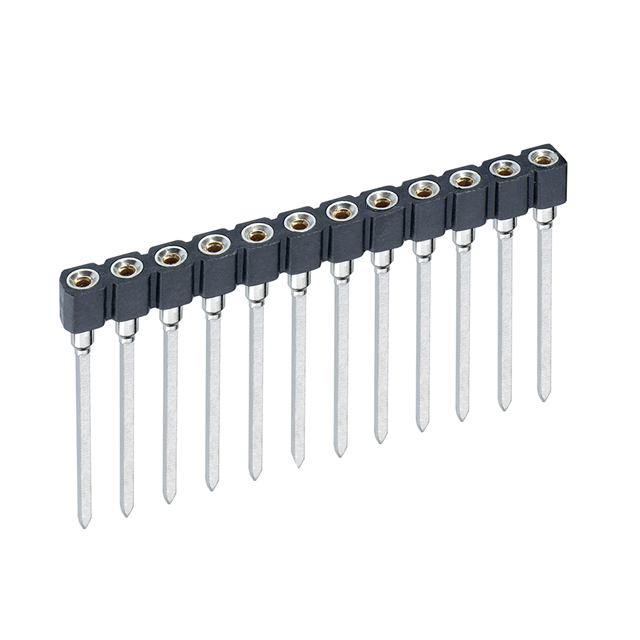

CONN SOCKET SIP 12POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRound Pin lC Sockets Spec Sheet Datasheet

D01-9951242

Active

Harwin Inc.

CONN SOCKET SIP 12POS GOLD

Deep-Dive with AI

DocumentsRound Pin lC Sockets Spec Sheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D01-9951242

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	196.9 µin
Contact Finish Thickness - Post	5 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	10 mOhm
Current Rating (Amps)	1 A
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	12
Number of Positions or Pins (Grid) [custom]	1 x 12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Wire Wrap
Termination Post Length [x]	0.51 in
Termination Post Length [x]	12.95 mm
Type	SIP

D01-995 Series

Part	Number of Positions or Pins (Grid)	Current Rating (Amps)	Termination Post Length [x]	Termination Post Length [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Finish - Post	Termination	Pitch - Post	Pitch - Post	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Post [custom]	Housing Material	Mounting Type	Contact Resistance	Pitch - Mating	Pitch - Mating	Contact Material - Mating	Number of Positions or Pins (Grid) [custom]
Harwin Inc. D01-9950742	7	1 A	0.51 in	12.95 mm	10 çin	0.25 çm	SIP	-55 °C	125 °C	UL94 V-0	Tin	Wire Wrap	2.54 mm	0.1 in	Gold	196.9 µin	5 µm	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	10 mOhm	0.1 in	2.54 mm	Beryllium Copper
Harwin Inc. D01-9951642	16	1 A	0.51 in	12.95 mm	10 çin	0.25 çm	SIP	-55 °C	125 °C	UL94 V-0	Tin	Wire Wrap	2.54 mm	0.1 in	Gold	196.9 µin	5 µm	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	10 mOhm	0.1 in	2.54 mm	Beryllium Copper
Harwin Inc. D01-9951442	14	1 A	0.51 in	12.95 mm	10 çin	0.25 çm	SIP	-55 °C	125 °C	UL94 V-0	Tin	Wire Wrap	2.54 mm	0.1 in	Gold	196.9 µin	5 µm	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	10 mOhm	0.1 in	2.54 mm	Beryllium Copper
Harwin Inc. D01-9951242	12	1 A	0.51 in	12.95 mm	10 çin	0.25 çm	SIP	-55 °C	125 °C	UL94 V-0	Tin	Wire Wrap	2.54 mm	0.1 in	Gold	196.9 µin	5 µm	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	10 mOhm	0.1 in	2.54 mm	Beryllium Copper	1 x 12
Harwin Inc. D01-9951042	10	1 A	0.51 in	12.95 mm	10 çin	0.25 çm	SIP	-55 °C	125 °C	UL94 V-0	Tin	Wire Wrap	2.54 mm	0.1 in	Gold	196.9 µin	5 µm	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	10 mOhm	0.1 in	2.54 mm	Beryllium Copper
Harwin Inc. D01-9950442	4	1 A	0.51 in	12.95 mm	10 çin	0.25 çm	SIP	-55 °C	125 °C	UL94 V-0	Tin	Wire Wrap	2.54 mm	0.1 in	Gold	196.9 µin	5 µm	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	10 mOhm	0.1 in	2.54 mm	Beryllium Copper	1 x 4
Harwin Inc. D01-9950842	8	1 A	0.51 in	12.95 mm	10 çin	0.25 çm	SIP	-55 °C	125 °C	UL94 V-0	Tin	Wire Wrap	2.54 mm	0.1 in	Gold	196.9 µin	5 µm	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	10 mOhm	0.1 in	2.54 mm	Beryllium Copper
Harwin Inc. D01-9950542	5	1 A	0.51 in	12.95 mm	10 çin	0.25 çm	SIP	-55 °C	125 °C	UL94 V-0	Tin	Wire Wrap	2.54 mm	0.1 in	Gold	196.9 µin	5 µm	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	10 mOhm	0.1 in	2.54 mm	Beryllium Copper
