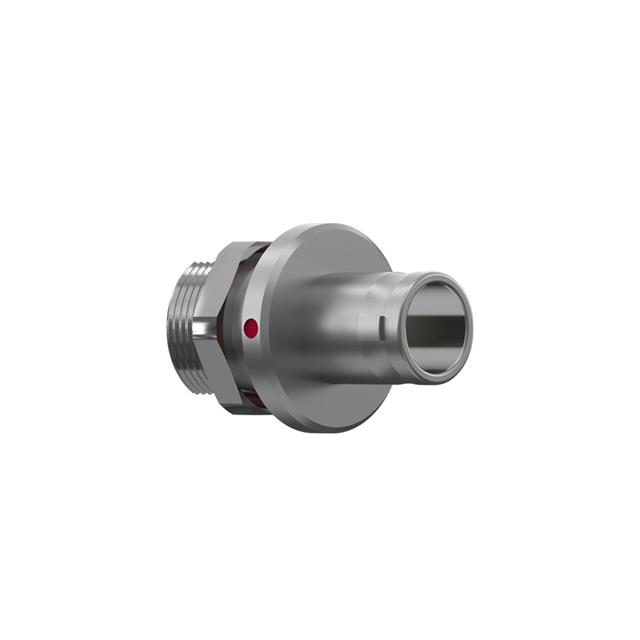

AD0L0C-P07RC00-0000

Active

ODU

ODU MINISNAP PANEL-MOUNT PLUG, S

Search across all available documentation for this part.

Active

ODU

ODU MINISNAP PANEL-MOUNT PLUG, S

Technical Specifications

Parameters and characteristics for this part

Specification	AD0L0C-P07RC00-0000

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	4 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Rear Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	7
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	0
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	0
Shielding	Unshielded
Termination	Solder
Voltage Rating	300 VDC

Part	Mounting Feature	Number of Positions	Ingress Protection	Fastening Type	Shell Finish	Current Rating (Amps)	Contact Material	Voltage Rating	Color	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Primary Material	Applications	Insert Material	Contact Finish - Mating	Connector Type	Shell Size - Insert	Shielding	Shell Material	Mounting Type	Termination
ODU AD0L0C-P07MCC0-0000	Bulkhead - Rear Side Nut	7	IP68 - Dust Tight Waterproof	Push-Pull	Chrome over Nickel	4 A	Brass	300 VDC	Silver	-40 °C	120 °C	0	Metal	Industrial Medical Military Testing Equipment & Measurement	Polyetheretherketone (PEEK)	Gold	Male Pins Plug	0	Unshielded	Brass
ODU AD0L0C-P07RC00-0000	Bulkhead - Rear Side Nut	7	IP68 - Dust Tight Waterproof	Push-Pull	Chrome over Nickel	4 A	Brass	300 VDC	Silver	-40 °C	120 °C	0	Metal	Industrial Medical Military Testing Equipment & Measurement	Polyetheretherketone (PEEK)	Gold	Male Pins Plug	0	Unshielded	Brass	Panel Mount Through Hole	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 50.33

General part information

7 Position Circular Connector Plug, Male Pins Solder
