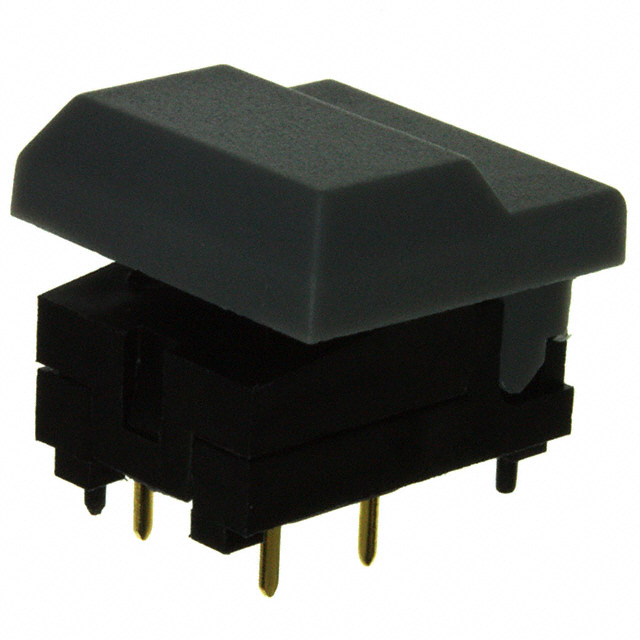

5511MGRYX
ActiveE-Switch
SWITCH PUSH SPDT 0.03A 12V
Deep-Dive with AI
Search across all available documentation for this part.
5511MGRYX
ActiveE-Switch
SWITCH PUSH SPDT 0.03A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5511MGRYX |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Square |
| Circuit | SPDT |
| Current Rating (Amps) | 300 mA |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -25 °C |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Type | Keyswitch |
| Voltage Rating - DC | 12 V |
5511 Series
| Part | Mechanical Life | Switch Function | Color - Actuator/Cap | Actuator Type | Current Rating (Amps) | Illumination Type, Color | Actuator Marking | Type | Voltage Rating - DC | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Voltage (Nominal) | Mounting Type | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch | 500000 Cycles | On-Mom | Black | Button Square | 300 mA | LED Yellow | No Marking | Keyswitch Illuminated | 12 V | PC Pin | 65 °C | -25 °C | 2.2 VDC | Through Hole | SPDT |
E-Switch | 500000 Cycles | On-Mom | Green | Button Square | 300 mA | No Marking | Keyswitch | 12 V | PC Pin | 65 °C | -25 °C | Through Hole | SPDT | ||
E-Switch | 500000 Cycles | On-Mom | Button Square | 300 mA | Green LED Yellow | No Marking | Keyswitch Illuminated | 12 V | PC Pin | 65 °C | -25 °C | 2.2 VDC | Through Hole | SPDT | |
E-Switch | 500000 Cycles | On-Mom | White | Button Square | 300 mA | Green LED | No Marking | Keyswitch Illuminated | 12 V | PC Pin | 65 °C | -25 °C | 2.2 VDC | Through Hole | SPDT |
E-Switch | 500000 Cycles | On-Mom | Black | Button Square | 300 mA | Green/Red LED | No Marking | Keyswitch Illuminated | 12 V | PC Pin | 65 °C | -25 °C | 2.2 VDC | Through Hole | SPDT |
E-Switch | 500000 Cycles | On-Mom | White | Button Square | 300 mA | Green/Red LED | No Marking | Keyswitch Illuminated | 12 V | PC Pin | 65 °C | -25 °C | 2.2 VDC | Through Hole | SPDT |
E-Switch | 500000 Cycles | On-Mom | Red | Button Square | 300 mA | Green/Red LED | No Marking | Keyswitch Illuminated | 12 V | PC Pin | 65 °C | -25 °C | 2.2 VDC | Through Hole | SPDT |
E-Switch | 500000 Cycles | On-Mom | Red | Button Square | 300 mA | No Marking | Keyswitch | 12 V | PC Pin | 65 °C | -25 °C | Through Hole | SPDT | ||
E-Switch | 500000 Cycles | On-Mom | Button Square | 300 mA | No Marking | Keyswitch | 12 V | PC Pin | 65 °C | -25 °C | Through Hole | SPDT | |||
E-Switch | 500000 Cycles | On-Mom | Button Square | 300 mA | LED Red | No Marking | Keyswitch Illuminated | 12 V | PC Pin | 65 °C | -25 °C | 2.2 VDC | Through Hole | SPDT |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.15 | |
| 10 | $ 3.71 | |||
| 500 | $ 2.82 | |||
| 1000 | $ 2.70 | |||
Description
General part information
5511 Series
Pushbutton Switch SPDT Keyswitch Through Hole
