PA0086C

Active

Chip Quik Inc.

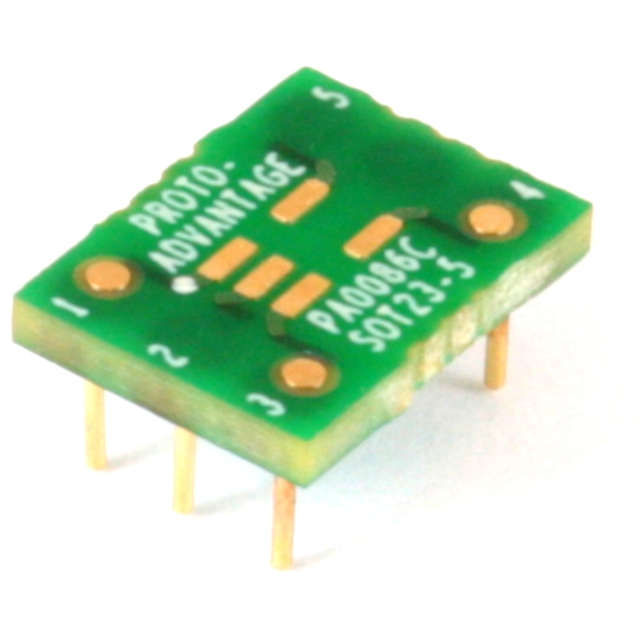

SOT23-5 TO DIP-6 SMT ADAPTER (0.

Search across all available documentation for this part.

Active

Chip Quik Inc.

SOT23-5 TO DIP-6 SMT ADAPTER (0.

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Material	Proto Board Type	Package Accepted	Board Thickness	Board Thickness	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
Chip Quik Inc. PA0086C	0.037 in	0.95 mm	FR4 Epoxy Glass	SMD to DIP	SOT-23	1.6 mm	0.063 in	0.3 "	7.62 mm	10.16 mm	0.4 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.69
LCSC	Piece	1	$ 15.78
		200	$ 6.30

General part information

SOT23-5 TO DIP-6 SMT ADAPTER (0.

Technical documentation and resources

No documents available
