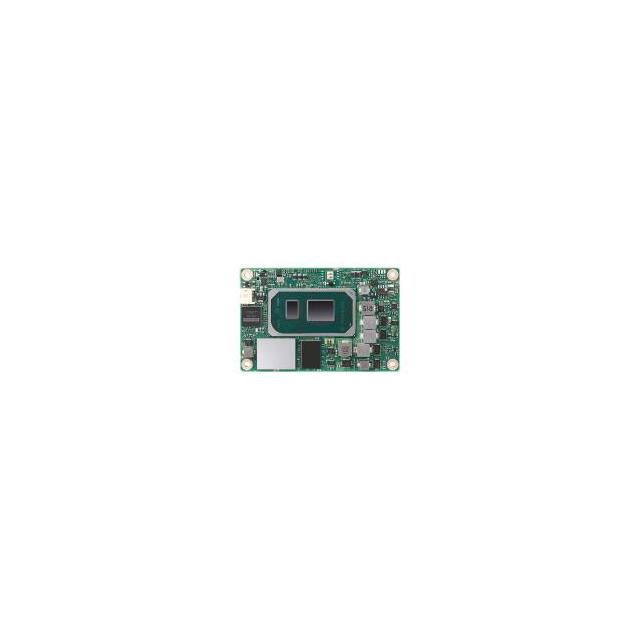

SOM-7583C7A-S8A1
ActiveAdvantech Corp
SBC 1.8GHZ 4 CORE 0GB/16GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
SOM-7583C7A-S8A1
ActiveAdvantech Corp
SBC 1.8GHZ 4 CORE 0GB/16GB RAM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SOM-7583C7A-S8A1 |
|---|---|
| Cooling Type | Fan |
| Core Processor | Intel Core i7-1185G7E |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Expansion Site/Bus | GPIO, LPC, CAN, SMBus, I2C, PCIe |
| Form Factor | COM Express Basic Module |
| Number of Cores | 4 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 28 W |
| RAM Capacity/Installed | 0 GB, 16 GB |
| Size / Dimension [x] | 84.07 mm |
| Size / Dimension [x] | 3.31 " |
| Size / Dimension [y] | 2.17 in |
| Size / Dimension [y] | 55.12 mm |
| Speed | 1.8 GHz |
| Storage Interface | SATA 3.0 (2) |
| USB | USB 2.0 (8), USB 3.2 (2) |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1562.26 | |
Description
General part information
SOM-7583 Series
Single Board Computer 1.8GHz 4 Core 0GB/16GB RAM Intel Core i7-1185G7E
