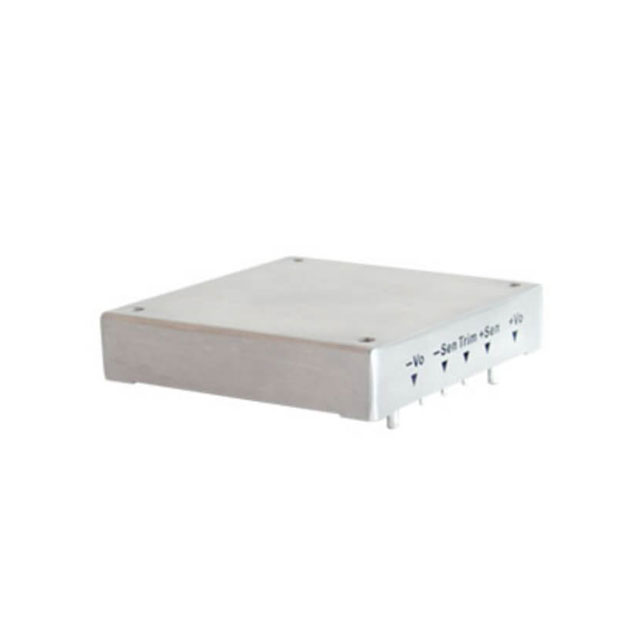

VHB100W-Q24-S3R3

CUI Inc.

DC DC CONVERTER 3.3V 66W

Deep-Dive with AI

Search across all available documentation for this part.

VHB100W-Q24-S3R3

CUI Inc.

DC DC CONVERTER 3.3V 66W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VHB100W-Q24-S3R3

Applications	ITE (Commercial)
Approval Agency	UL
Control Features	Active High, Enable
Current - Output (Max) [Max]	20 A
Efficiency	81.5 %
Features	OVP, OTP, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	9-DIP Module
Size / Dimension [x]	2.4 in
Size / Dimension [x]	61 mm
Size / Dimension [y]	2.28 in
Size / Dimension [y]	57.9 mm
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Standard Number	60950-1
Supplier Device Package	Half Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	3.3 V

VHB100W Series

Part	Standard Number	Mounting Type	Current - Output (Max) [Max]	Efficiency	Features	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Number of Outputs	Approval Agency	Applications	Voltage - Input (Max) [Max]	Voltage - Isolation	Power (Watts)	Package / Case	Voltage - Input (Min) [Min]	Type	Supplier Device Package
CUI Inc. VHB100W-Q24-S48	60950-1	Through Hole	2.08 A	85 %	OCP OTP OVP Remote On/Off SCP UVLO	100 °C	-40 °C	Active High Enable	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	48 V	1	UL	ITE (Commercial)	36 V	1.5 kV	100 W	9-DIP Module	9 V	Isolated Module
CUI Inc. VHB100W-Q24-S24	60950-1	Through Hole	4.17 A	86 %	OCP OTP OVP Remote On/Off SCP UVLO	100 °C	-40 °C	Active High Enable	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	24 V	1	UL	ITE (Commercial)	36 V	1.5 kV	100 W	9-DIP Module	9 V	Isolated Module
CUI Inc. VHB100W-Q48-S24	60950-1	Through Hole	4.17 A	88 %	OCP OTP OVP Remote On/Off SCP UVLO	100 °C	-40 °C	Active High Enable	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	24 V	1	UL	ITE (Commercial)	75 V	1.5 kV	100 W	9-DIP Module	18 V	Isolated Module
CUI Inc. VHB100W-Q24-S5	60950-1	Through Hole	20 A	83.5 %	OCP OTP OVP Remote On/Off SCP UVLO	100 °C	-40 °C	Active High Enable	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	5 V	1	UL	ITE (Commercial)	36 V	1.5 kV	100 W	9-DIP Module	9 V	Isolated Module
CUI Inc. VHB100W-Q24-S3R3	60950-1	Through Hole	20 A	81.5 %	OCP OTP OVP Remote On/Off SCP	100 °C	-40 °C	Active High Enable	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	3.3 V	1	UL	ITE (Commercial)	36 V	1.5 kV		9-DIP Module	9 V	Isolated Module	Half Brick
CUI Inc. VHB100W-Q24-S28	60950-1	Through Hole	3.57 A	86 %	OCP OTP OVP Remote On/Off SCP UVLO	100 °C	-40 °C	Active High Enable	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	28 V	1	UL	ITE (Commercial)	36 V	1.5 kV	100 W	9-DIP Module	9 V	Isolated Module
CUI Inc. VHB100W-Q48-S28	60950-1	Through Hole	3.57 A	88 %	OCP OTP OVP Remote On/Off SCP UVLO	100 °C	-40 °C	Active High Enable	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	28 V	1	UL	ITE (Commercial)	75 V	1.5 kV	100 W	9-DIP Module	18 V	Isolated Module
CUI Inc. VHB100W-Q24-S15	60950-1	Through Hole	6.7 A	86.5 %	OCP OTP OVP Remote On/Off SCP UVLO	100 °C	-40 °C	Active High Enable	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	15 V	1	UL	ITE (Commercial)	36 V	1.5 kV	100 W	9-DIP Module	9 V	Isolated Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	12	$ 122.19

Description

General part information

VHB100W Series

Isolated Module DC DC Converter 1 Output 3.3V 20A 9V - 36V Input

Documents

Technical documentation and resources

No documents available
