LQW18CAR16J00D

Active

Murata Power Solutions Inc.

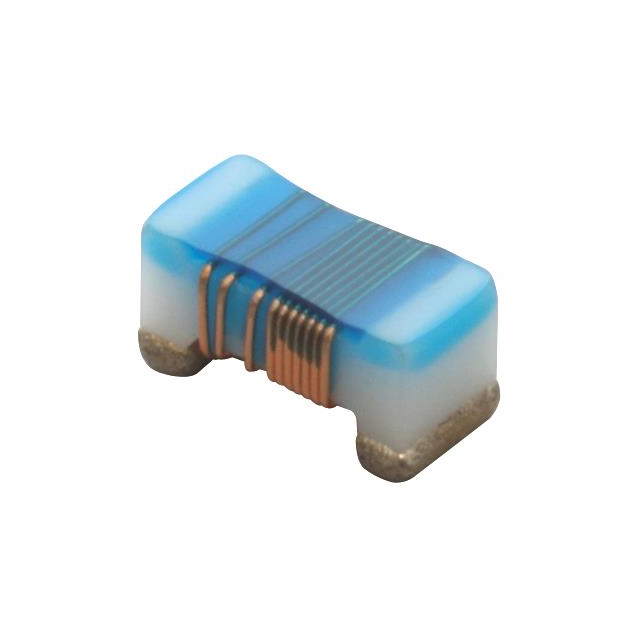

FIXED IND 160NH 1.3A 75 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LQW18CAR16J00D

Active

Murata Power Solutions Inc.

FIXED IND 160NH 1.3A 75 MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LQW18CAR16J00D

Current Rating (Amps)	1.3 A
DC Resistance (DCR) [Max]	75 mOhm
Frequency - Self Resonant	1.35 GHz
Height - Seated (Max) [Max] [z]	0.037 "
Height - Seated (Max) [Max] [z]	0.95 mm
Inductance	160 nH
Inductance Frequency - Test	10 MHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	0603 (1608 Metric)
Shielding	Unshielded
Size / Dimension [x]	0.063 in
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.8 mm
Size / Dimension [y]	0.031 in
Tolerance	5 %
Type	Wirewound, Drum Core

LQW18CA Series

Part	DC Resistance (DCR)	Current Rating (Amps)	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Frequency - Self Resonant	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Material - Core	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Type	Mounting Type	Shielding	Inductance	DC Resistance (DCR) [Max]
Murata Power Solutions Inc. LQW18CAR21J00D	115 mOhm	1.05 A	10 MHz	0.8 mm	0.063 in	1.6 mm	0.031 in	1.15 GHz	5 %	0.037 "	0.95 mm	Ferrite	0603 (1608 Metric)	85 °C	-40 °C	Drum Core Wirewound	Surface Mount	Unshielded	210 nH
Murata Power Solutions Inc. LQW18CAR27J00D		900 mA	10 MHz	0.8 mm	0.063 in	1.6 mm	0.031 in	1.05 GHz	5 %	0.037 "	0.95 mm	Ferrite	0603 (1608 Metric)	85 °C	-40 °C	Drum Core Wirewound	Surface Mount	Unshielded	270 nH	150 mOhm
Murata Power Solutions Inc. LQW18CAR16J00D		1.3 A	10 MHz	0.8 mm	0.063 in	1.6 mm	0.031 in	1.35 GHz	5 %	0.037 "	0.95 mm	Ferrite	0603 (1608 Metric)	85 °C	-40 °C	Drum Core Wirewound	Surface Mount	Unshielded	160 nH	75 mOhm
Murata Power Solutions Inc. LQW18CAR58J00D		450 mA	10 MHz	0.8 mm	0.063 in	1.6 mm	0.031 in		5 %	0.037 "	0.95 mm	Ferrite	0603 (1608 Metric)	85 °C	-40 °C	Drum Core Wirewound	Surface Mount	Unshielded	580 nH	460 mOhm
Murata Power Solutions Inc. LQW18CAR12J00D		1.5 A	10 MHz	0.8 mm	0.063 in	1.6 mm	0.031 in	1.5 GHz	5 %	0.037 "	0.95 mm	Ferrite	0603 (1608 Metric)	85 °C	-40 °C	Drum Core Wirewound	Surface Mount	Unshielded	120 nH	58 mOhm
Murata Power Solutions Inc. LQW18CA56NJ00D		1.85 A	10 MHz	0.8 mm	0.063 in	1.6 mm	0.031 in		5 %	0.037 "	0.95 mm	Ferrite	0603 (1608 Metric)	85 °C	-40 °C	Drum Core Wirewound	Surface Mount	Unshielded	56 nH	40 mOhm
Murata Power Solutions Inc. LQW18CA85NJ00D		1.65 A	10 MHz	0.8 mm	0.063 in	1.6 mm	0.031 in	1.8 GHz	5 %	0.037 "	0.95 mm	Ferrite	0603 (1608 Metric)	85 °C	-40 °C	Drum Core Wirewound	Surface Mount	Unshielded
