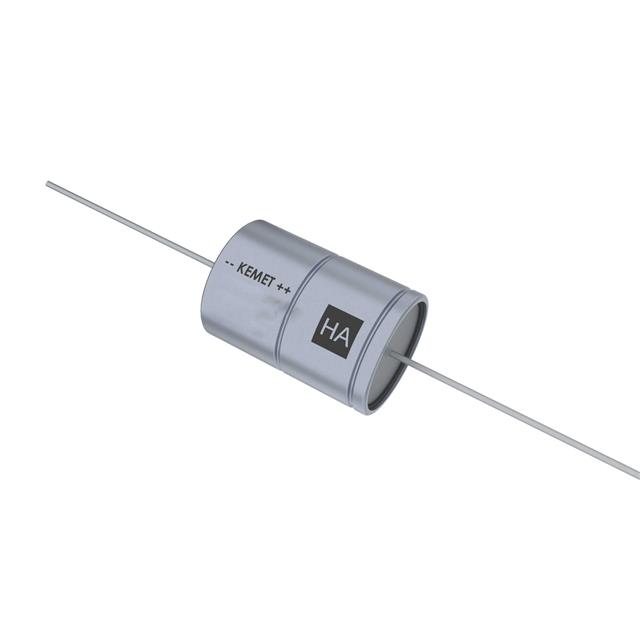

PHA227MLP4110ME4
ActiveKEMET
CAP ALUMHYB 1100UF 20% 63V TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PHA227MLP4110ME4
ActiveKEMET
CAP ALUMHYB 1100UF 20% 63V TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PHA227MLP4110ME4 |
|---|---|
| Applications | Automotive |
| Capacitance | 1100 µF |
| ESR (Equivalent Series Resistance) | 100 mOhms |
| Features | High Vibration |
| Lifetime @ Temp. | 8000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Can, Axial |
| Ratings | AEC-Q200 |
| Ripple Current @ High Frequency | 36.5 A |
| Ripple Current @ Low Frequency | 7.3 A |
| Size / Dimension [diameter] | 0.717 in |
| Size / Dimension [diameter] | 18.2 mm |
| Size / Dimension [x] | 34.7 mm |
| Size / Dimension [x] | 1.366 " |
| Tolerance | 20 % |
| Type | Hybrid |
| Voltage - Rated | 63 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.43 | |
| 10 | $ 10.57 | |||
| 430 | $ 8.00 | |||
| 1290 | $ 7.14 | |||
Description
General part information
PHA227M Series
1100 µF 63 V Aluminum - Polymer Capacitors Axial, Can 100mOhm 8000 Hrs @ 125°C
