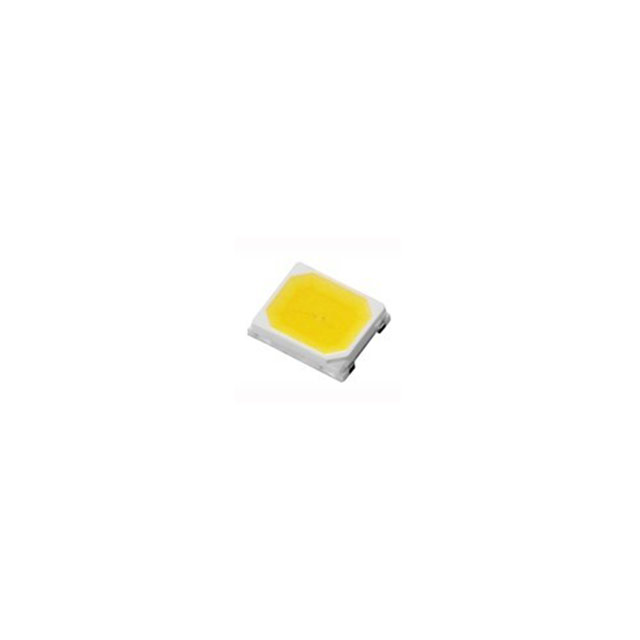

EAPL2835WA5

Active

Everlight Electronics Co Ltd

LED NEUTRAL WHT 4000K 2PLCC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EAPL2835WA5

Active

Everlight Electronics Co Ltd

LED NEUTRAL WHT 4000K 2PLCC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EAPL2835WA5

CCT (K)	4000 K
Color	Neutral, White
CRI (Color Rendering Index)	80
Current - Max [Max]	75 mA
Current - Test	60 mA
Flux @ 25°C, Current - Test	27 lm
Height - Seated (Max) [Max] [z]	0.85 mm
Height - Seated (Max) [Max] [z]	0.033 "
Lumens/Watt @ Current - Test	138 lm/W
Mounting Type	Surface Mount
Package / Case	1411
Package / Case	3528 Metric
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Supplier Device Package	2-PLCC
Thermal Resistance of Package [custom]	50 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.25 V

EAPL2835 Series

Part	Package / Case	Package / Case	CRI (Color Rendering Index)	Thermal Resistance of Package [diameter]	Supplier Device Package	Mounting Type	Current - Max [Max]	Viewing Angle	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Test	Voltage - Forward (Vf) (Typ)	CCT (K)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Color	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Thermal Resistance of Package [custom]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test
Everlight Electronics Co Ltd EAPL2835WB1	1411	3528 Metric	80	21 °C/W	2-PLCC	Surface Mount	180 mA	120 °	127 lm/W	0.11 in	2.8 mm	0.138 "	3.5 mm	150 mA	3.15 V	5700 K	0.85 mm	0.033 "	Cool White	60 lm	70 lm	50 lm
Everlight Electronics Co Ltd EAPL2835WA1	1411	3528 Metric	80	21 °C/W	2-PLCC	Surface Mount	180 mA	120 °	106 lm/W	0.11 in	2.8 mm	0.138 "	3.5 mm	150 mA	3.15 V	2700 K	0.85 mm	0.033 "	Warm White	50 lm	60 lm	40 lm
Everlight Electronics Co Ltd EAPL2835WA4	1411	3528 Metric	80		2-PLCC	Surface Mount	75 mA	120 °	138 lm/W	0.11 in	2.8 mm	0.138 "	3.5 mm	60 mA	3.25 V	3500 K	0.85 mm	0.033 "	Warm White				50 °C/W
Everlight Electronics Co Ltd EAPL2835WA6	1411	3528 Metric	80	21 °C/W	2-PLCC	Surface Mount	180 mA	120 °	116 lm/W	0.11 in	2.8 mm	0.138 "	3.5 mm	150 mA	3.15 V	4000 K	0.85 mm	0.033 "	Neutral White	55 lm	65 lm	45 lm
Everlight Electronics Co Ltd EAPL2835WA5	1411	3528 Metric	80		2-PLCC	Surface Mount	75 mA	120 °	138 lm/W	0.11 in	2.8 mm	0.138 "	3.5 mm	60 mA	3.25 V	4000 K	0.85 mm	0.033 "	Neutral White	27 lm			50 °C/W
Everlight Electronics Co Ltd EAPL2835WB4	1411	3528 Metric	80	21 °C/W	2-PLCC	Surface Mount	180 mA	120 °	127 lm/W	0.11 in	2.8 mm	0.138 "	3.5 mm	150 mA	3.15 V	6500 K	0.85 mm	0.033 "	Cool White	60 lm	70 lm	50 lm
Everlight Electronics Co Ltd EAPL2835WB2	1411	3528 Metric	80		2-PLCC	Surface Mount	75 mA	120 °	144 lm/W	0.11 in	2.8 mm	0.138 "	3.5 mm	60 mA	3.25 V	6000 K	0.85 mm	0.033 "	Cool White	28 lm			50 °C/W	33 lm	22 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.28
		10	$ 0.22
		100	$ 0.10
		500	$ 0.09
		1000	$ 0.07
		2000	$ 0.06
	Digi-Reel®	1	$ 0.28
		10	$ 0.22
		100	$ 0.10
		500	$ 0.09
		1000	$ 0.07
		2000	$ 0.06
	Tape & Reel (TR)	4000	$ 0.06
		8000	$ 0.06
		12000	$ 0.05
		28000	$ 0.05
		100000	$ 0.04

Description

General part information

EAPL2835 Series

LED Lighting - White, Neutral 4000K 3.25V 60mA 120° 1411 (3528 Metric)
