W10F1C-P02MJG0-4000

Active

ODU

ODU MINI-SNAP PLUG, R/A, SZ 0, S

Deep-Dive with AI

Search across all available documentation for this part.

W10F1C-P02MJG0-4000

Active

ODU

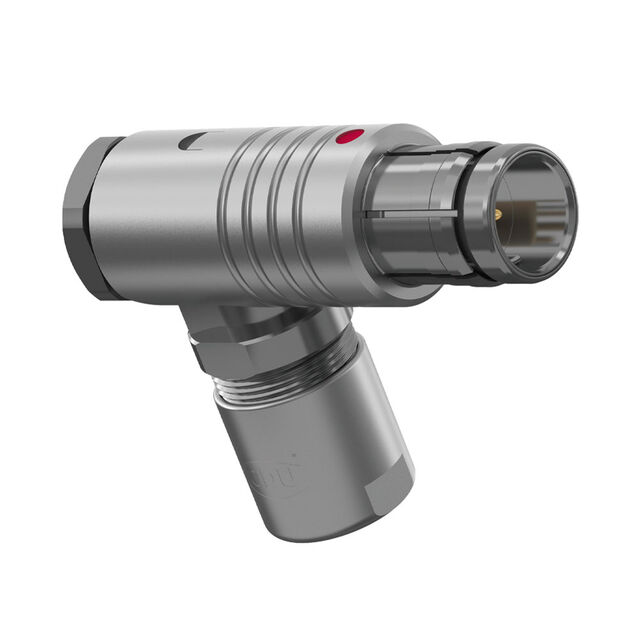

ODU MINI-SNAP PLUG, R/A, SZ 0, S

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	W10F1C-P02MJG0-4000

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel
Cable Opening [Max] [diameter]	0.157 in
Cable Opening [Max] [diameter]	4 mm
Cable Opening [Min] [diameter]	0.138 in
Cable Opening [Min] [diameter]	3.5 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	1
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	0
Shielding	Unshielded
Voltage Rating	500 V

W10F1C-P Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating	Ingress Protection	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Shell Finish	Connector Type	Fastening Type	Shell Material	Primary Material	Color	Insert Material	Shielding	Features	Contact Finish - Mating	Backshell Material, Plating	Material Flammability Rating	Contact Material	Mounting Type	Applications	Orientation	Cable Opening [Max] [diameter]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Number of Positions
ODU W10F1C-P03MJG0-5000	-40 °C	120 °C	7.5 A	400 V	IP50	0.197 in	0.177 in	5 mm	4.5 mm	Chrome over Nickel	Male Pins Plug	Push-Pull	Brass	Metal	Silver	Polyetheretherketone (PEEK)	Unshielded	Backshell	Gold	Brass Chrome over Nickel	UL94 V-0	Brass	Free Hanging (In-Line) Right Angle	Industrial Medical Military Testing Equipment & Measurement	1
ODU W10F1C-P05MFG0-4000	-40 °C	120 °C	7.5 A	200 V	IP50	0.157 in	0.138 in		3.5 mm	Chrome over Nickel	Male Pins Plug	Push-Pull	Brass	Metal	Silver	Polyetheretherketone (PEEK)	Unshielded	Backshell	Gold	Brass Chrome over Nickel	UL94 V-0	Brass	Free Hanging (In-Line) Right Angle	Industrial Medical Military Testing Equipment & Measurement	1	4 mm
ODU W10F1C-P05MFG0-4500	-40 °C	120 °C	7.5 A	200 V	IP50					Chrome over Nickel	Male Pins Plug	Push-Pull	Brass	Metal	Silver	Polyetheretherketone (PEEK)	Unshielded	Backshell	Gold	Brass Chrome over Nickel	UL94 V-0	Brass	Free Hanging (In-Line) Right Angle	Industrial Medical Military Testing Equipment & Measurement	1		4.5 mm	0.157 in	0.177 in	4 mm
ODU W10F1C-P02MJG0-4000	-40 °C	120 °C	7.5 A	500 V	IP50	0.157 in	0.138 in		3.5 mm	Chrome over Nickel	Male Pins Plug	Push-Pull	Brass	Metal	Silver	Polyetheretherketone (PEEK)	Unshielded	Backshell	Gold	Brass Chrome over Nickel	UL94 V-0	Brass	Free Hanging (In-Line) Right Angle	Industrial Medical Military Testing Equipment & Measurement	1	4 mm					2
ODU W10F1C-P04MFG0-5000	-40 °C	120 °C	7.5 A	300 VDC	IP50	0.197 in	0.177 in	5 mm	4.5 mm	Chrome over Nickel	Male Pins Plug	Push-Pull	Brass	Metal	Silver	Polyetheretherketone (PEEK)	Unshielded	Backshell	Gold	Brass Chrome over Nickel	UL94 V-0	Brass	Free Hanging (In-Line) Right Angle	Industrial Medical Military Testing Equipment & Measurement	1						4
ODU W10F1C-P02MJG0-5000	-40 °C	120 °C	7.5 A	500 V	IP50	0.197 in	0.177 in	5 mm	4.5 mm	Chrome over Nickel	Male Pins Plug	Push-Pull	Brass	Metal	Silver	Polyetheretherketone (PEEK)	Unshielded	Backshell	Gold	Brass Chrome over Nickel	UL94 V-0	Brass	Free Hanging (In-Line) Right Angle	Industrial Medical Military Testing Equipment & Measurement	1						2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 72.66

Description

General part information

W10F1C-P Series

2 Position Circular Connector Plug, Male Pins Solder Cup
