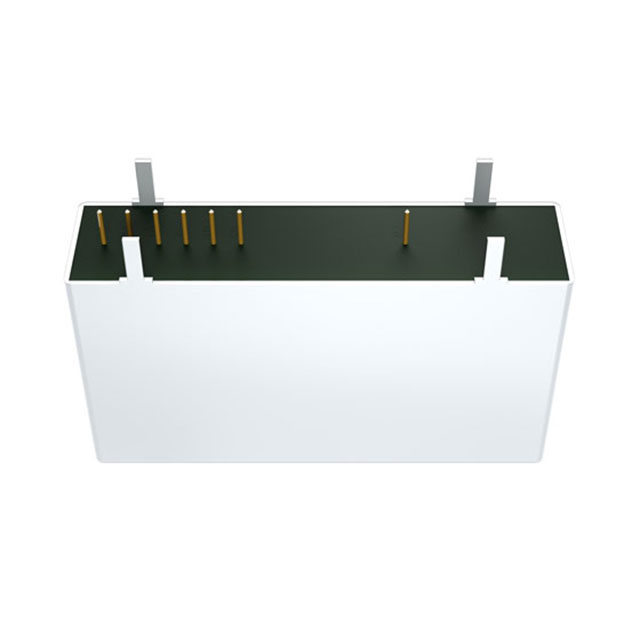

0.6V24-N1-WS

Active

ULTRAVOLT / Advanced Energy

DC DC CONVERTER 600V 1W

Search across all available documentation for this part.

Active

ULTRAVOLT / Advanced Energy

DC DC CONVERTER 600V 1W

Technical Specifications

Parameters and characteristics for this part

Specification	0.6V24-N1-WS

Applications	ITE (Commercial)
Approval Agency	CE, cURus, UL, cUL
Control Features	Active Low, Enable
Current - Output (Max) [Max]	1.67 mA
Features	Adjustable Output
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-10 °C
Package / Case	9-SIP Module
Size / Dimension [x]	46 mm
Size / Dimension [x]	1.81 in
Size / Dimension [y]	0.47 "
Size / Dimension [y]	12 mm
Size / Dimension [z]	0.98 in
Size / Dimension [z]	25 mm
Type	High Voltage - Non-Isolated Module
Voltage - Input (Max) [Max]	26 V
Voltage - Input (Min) [Min]	22 V
Voltage - Output 1	600 V

Part	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Type	Mounting Type	Features	Number of Outputs	Approval Agency	Applications	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Output 1	Package / Case	Control Features
ULTRAVOLT / Advanced Energy 0.6V24-N1-WS	22 V	-10 °C	65 °C	0.47 "	46 mm	1.81 in	0.98 in	12 mm	25 mm	High Voltage - Non-Isolated Module	Through Hole	Adjustable Output	1	CE cUL cURus UL	ITE (Commercial)	1.67 mA	26 V	600 V	9-SIP Module	Active Low Enable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3	$ 311.66

General part information

High Voltage - Non-Isolated Module DC DC Converter 1 Output 600V 1.67mA 22V - 26V Input
