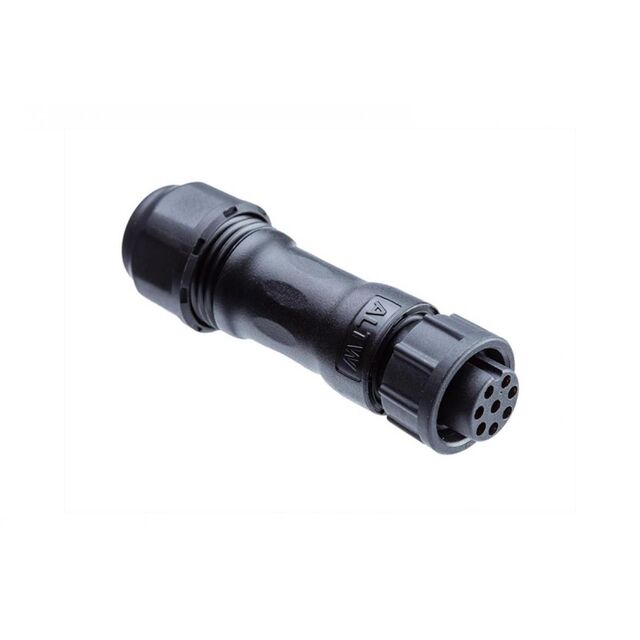

ADD-18BFMC-SL7AP0

Active

Amphenol LTW

F, M, CRIMP, SCREW

Search across all available documentation for this part.

Active

Amphenol LTW

F, M, CRIMP, SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	ADD-18BFMC-SL7AP0

Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	18
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	D
Shielding	Unshielded
Termination	Crimp
Voltage Rating	250 VDC

Part	Material Flammability Rating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions	Backshell Material, Plating	Contact Finish - Mating	Orientation	Features	Insert Material	Shell Material	Shielding	Ingress Protection	Voltage Rating	Mounting Type	Termination	Color	Shell Size - Insert	Current Rating (Amps)	Primary Material
Amphenol LTW ADD-18BFMC-SL7AP0	UL94 V-0	Copper Alloy	-40 °C	105 ░C	Male Pins Plug	18	Glass Filled Nylon Polyamide (PA)	Gold	Keyed	Backshell	Polyamide (PA) Nylon Glass Filled	Glass Filled Nylon Polyamide (PA)	Unshielded	IP67 - Dust Tight Waterproof	250 VDC	Free Hanging (In-Line)	Crimp	Black	D	5 A	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position Circular Connector Plug, Male Pins Crimp
