0190120032

Active

Molex

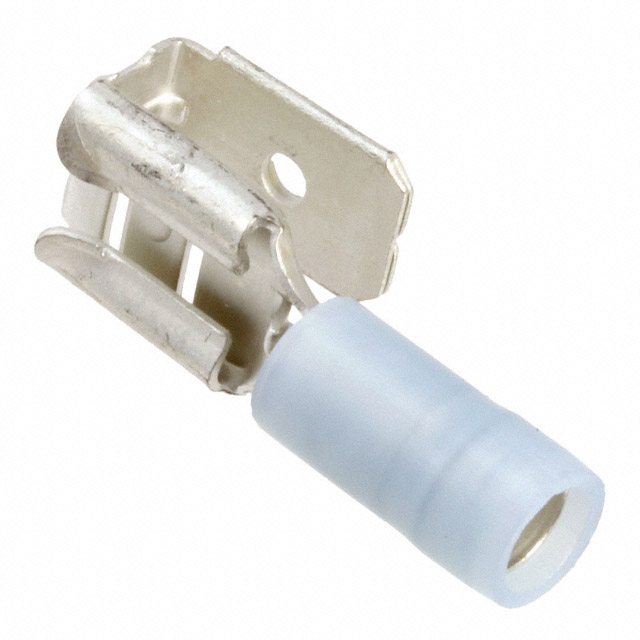

QUICK DISCONNECT TERMINAL 14-16AWG BRASS BLUE F 22.1MM TIN AVIKRIMP™ T/R

Search across all available documentation for this part.

Active

Molex

QUICK DISCONNECT TERMINAL 14-16AWG BRASS BLUE F 22.1MM TIN AVIKRIMP™ T/R

Technical Specifications

Parameters and characteristics for this part

Specification	0190120032

Color	Blue
Contact Finish	Tin
Contact Material	Brass
Gender	Female, Male
Insulation	Non-Mating End Insulated
Insulation Diameter [diameter]	3.56 mm
Insulation Diameter [diameter]	0.14 in
Length - Overall [x]	22.1 mm
Length - Overall [x]	0.87 in
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Stacked
Termination	Crimp

Part	Tab Thickness	Tab Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Contact Material	Gender	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Terminal Type	Length - Overall [x]	Length - Overall [x]	Color	Insulation	Tab Width	Tab Width	Contact Finish	Mounting Type	Length - Overall	Length - Overall
Molex 0190120030	0.032 in	0.81 mm	22 AWG	17.5 AWG	Crimp	Brass	Female Male	2.79 mm	0.11 in	Stacked	22.1 mm	0.87 in	Red	Non-Mating End Insulated	6.35 mm	0.25 in	Tin	Free Hanging (In-Line)
Molex 0190120029	0.032 in	0.81 mm	22 AWG	17.5 AWG	Crimp	Brass	Female Male	3.18 mm	0.125 in	Stacked			Red	Non-Mating End Insulated	6.35 mm	0.25 in	Tin	Free Hanging (In-Line)	0.865 in	21.97 mm
Molex 0190120001
Molex 0190120032	0.032 in	0.81 mm			Crimp	Brass	Female Male	3.56 mm	0.14 in	Stacked	22.1 mm	0.87 in	Blue	Non-Mating End Insulated	6.35 mm	0.25 in	Tin	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.250" (6.35mm) Quick Connect Female and Male 14-16 AWG Crimp Connector Non-Mating End Insulated
