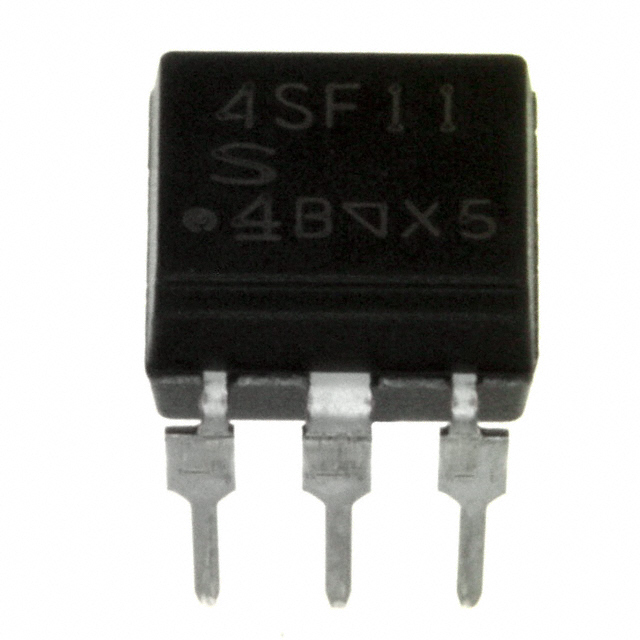

PC4SF11YTZBF

Unknown

SHARP/Socle Technology

OPTOISOLATOR 5KV TRIAC 6DIP

Search across all available documentation for this part.

Unknown

SHARP/Socle Technology

OPTOISOLATOR 5KV TRIAC 6DIP

Technical Specifications

Parameters and characteristics for this part

Specification	PC4SF11YTZBF

Approval Agency	DEMKO, FIMKO, SEMKO, VDE, BSI, UR, CSA
Current - DC Forward (If) (Max)	50 mA
Current - Hold (Ih)	3.5 mA
Current - LED Trigger (Ift) (Max) [Max]	7 mA
Current - On State (It (RMS)) (Max)	100 mA
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Output Type	Triac
Package / Case	7.62 mm
Package / Case	6-DIP
Package / Case	0.3 in, 5 Leads
Static dV/dt (Min) [Min]	50 V/µs
Supplier Device Package	6-DIP
Turn On Time	100 µs
Voltage - Off State	800 V
Zero Crossing Circuit	False

Part	Current - DC Forward (If) (Max)	Current - On State (It (RMS)) (Max)	Approval Agency	Current - LED Trigger (Ift) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Zero Crossing Circuit	Current - Hold (Ih)	Number of Channels	Supplier Device Package	Static dV/dt (Min) [Min]	Package / Case	Package / Case	Package / Case	Turn On Time	Voltage - Off State	Output Type
SHARP/Socle Technology PC4SF11YTZBF	50 mA	100 mA	BSI CSA DEMKO FIMKO SEMKO UR VDE	7 mA	100 °C	-30 ░C	Through Hole		3.5 mA	1	6-DIP	50 V/µs	7.62 mm	6-DIP	0.3 in 5 Leads	100 µs	800 V	Triac

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 0.90

General part information

Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP
