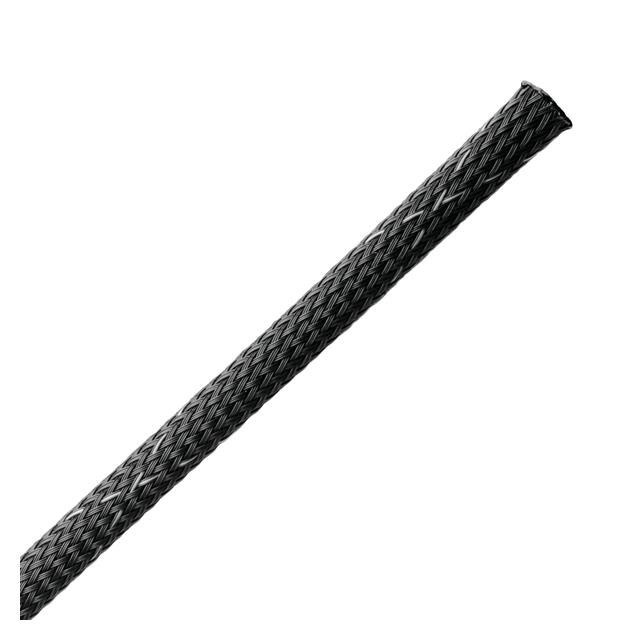

170-03117

Active

HELLERMANNTYTON

BRAIDED SLEEVING, EXPANDABLE, FRAY RESISTANT, FLAME RETARDANT, 0.25"DIA, PET, BLACK, 1000FT/BULK REEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Materials Guide for Bundling & Securing

170-03117

Active

HELLERMANNTYTON

BRAIDED SLEEVING, EXPANDABLE, FRAY RESISTANT, FLAME RETARDANT, 0.25"DIA, PET, BLACK, 1000FT/BULK REEL

Deep-Dive with AI

DocumentsDatasheet Materials Guide for Bundling & Securing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	170-03117

Abrasion Protection	Abrasion Resistant, Fray Resistant
Color	White, Black
Diameter - Inside, Expanded [diameter]	0.438 in
Diameter - Inside, Expanded [diameter]	11.13 mm
Diameter - Outside, Non-Expanded [diameter]	7.37 mm
Diameter - Outside, Non-Expanded [diameter]	0.29 in
Features	Clean Cut, Self Extinguishing
Heat Protection	Flame Retardant
Length	1000 ft
Length	304.8 m
Material	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Type	Sleeve
Type Attributes	Expandable

BSHTTST Series

Spiral Wraps, Sleeves, Tubing & Conduit BSPSW100B BLK 1.00 BRDSLVWRAP

...

Part	Type	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Features	Material Flammability Rating	Abrasion Protection	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Type Attributes	Length	Length	Color	Material	Operating Temperature [Max]	Operating Temperature [Min]	Heat Protection	Tool Type	For Use With/Related Products	Liquid Protection	Length [x]	Length [x]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Wall Thickness	Wall Thickness	Diameter - Inside, Expanded [diameter]	Wall Thickness [custom]	Wall Thickness [custom]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Environment Protection
HELLERMANNTYTON 170-03117	Sleeve	7.37 mm	0.29 in	Clean Cut Self Extinguishing	UL VW-1	Abrasion Resistant Fray Resistant	0.438 in	11.13 mm	Expandable	1000 ft	304.8 m	Black White	Polyethylene Terephthalate (PET) Halogen Free	125 °C	-70 °C	Flame Retardant
HELLERMANNTYTON 170-03039																	Bench Mount Hot Knife	Sleeving
HELLERMANNTYTON 170-03074	Sleeve	20.32 mm	0.8 in	Chemical Resistant Solvent Resistant	UL VW-1	Abrasion and Cut Resistant	1.25 in	31.75 mm	Expandable			Gray	Polyethylene Terephthalate (PET) Halogen Free	125 °C	-70 °C	Flame Retardant			Fluid Resistant Gasoline Resistant	22.86 m	75 ft	19.05 mm	0.75 in
HELLERMANNTYTON 170-03183	Self Wrap	16.69 mm	0.657 in	Dust Resistant Noise Reduction	UL VW-1	Abrasion Resistant			Split Flexible Tube			Black	Polyethylene Terephthalate (PET)	125 °C	-70 °C					76.2 m	250 ft	15.88 mm	0.625 in	0.69 mm	0.027 in
HELLERMANNTYTON 170-03019	Sleeve	26.42 mm	1.04 "	Clean Cut Self Extinguishing	UL VW-1	Abrasion Resistant Fray Resistant		1.188 in	Expandable		15.24 m	Black White	Polyethylene Terephthalate (PET) Halogen Free	125 °C	-70 °C	Flame Retardant					50 ft	25.4 mm	1 in			30.18 mm
HELLERMANNTYTON 170-03012	Sleeve			Chemical Resistant Clean Cut Fungus Resistant	UL94 V-0	Abrasion and Cut Resistant Fray Resistant	0.75 in	19.05 mm	Expandable	100 ft	30.48 m	Black	Polyethylene Terephthalate (PET) Halogen Free	125 °C	-70 °C							12.7 mm	0.5 in
HELLERMANNTYTON 170-03230	Self Wrap					Abrasion Resistant	0.38 in	9.65 mm	Split Flexible Tube	150 ft	45.72 m		Polyester (PES)	150 °C	-70 °C							2.49 mm	0.098 in	0.69 mm	0.027 in
HELLERMANNTYTON 170-03008	Sleeve	20.32 mm	0.8 in	Chemical Resistant Solvent Resistant	UL VW-1	Abrasion and Cut Resistant	1.25 in	31.75 mm	Expandable			Black	Polyethylene Terephthalate (PET) Halogen Free	125 °C	-70 °C	Flame Retardant			Fluid Resistant Gasoline Resistant	22.86 m	75 ft	19.05 mm	0.75 in
HELLERMANNTYTON 170-03142	Self Wrap	13.97 mm	0.55 in	Self Extinguishing	UL VW-1	Abrasion Resistant	0.5 in	12.7 mm	Split Flexible Tube	150 ft	45.72 m	Black	Polyethylene Terephthalate (PET) Halogen Free	125 °C	-70 °C	Flame Retardant											0.025 in	0.64 mm
HELLERMANNTYTON 170-03097	Sleeving Insulated			Chemical Resistant Clean Cut Solvent Resistant	Non Flammable	Abrasion and Cut Resistant			Convoluted - Braided		15.24 m	Silver	Aluminized Fiberglass Halogen Free	255 °C	-60 °C	Flame Retardant Heat Resistant			Gasoline Resistant Oil Resistant		50 ft						0.025 in	0.64 mm	60.32 mm	2.375 in	63.5 mm	2.5 "	UV Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 345.95
Newark	Spool of 1000	1	$ 490.16
		5	$ 474.09
		10	$ 458.01
		25	$ 423.20
		50	$ 399.09
