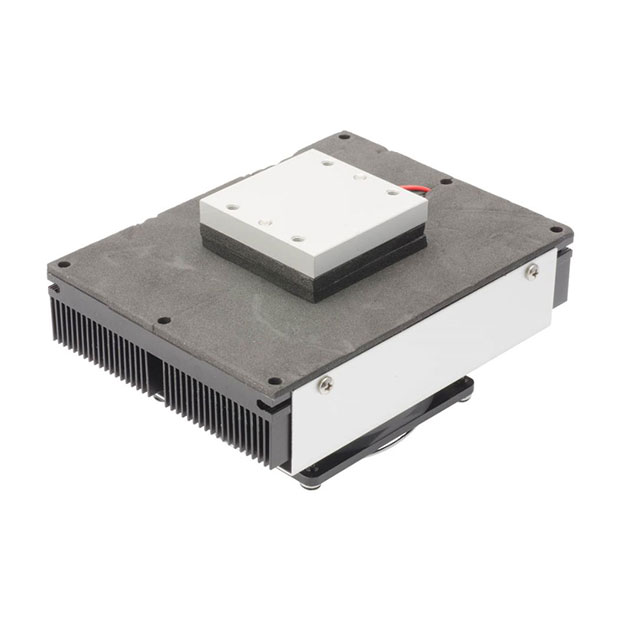

DAC035-12-02-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY DIRECT-AIR 31W
Deep-Dive with AI
Search across all available documentation for this part.
DAC035-12-02-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY DIRECT-AIR 31W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DAC035-12-02-00-00 |
|---|---|
| Current | 4.8 A |
| Dimensions - Overall [x] | 160 mm |
| Dimensions - Overall [y] | 122 mm |
| Dimensions - Overall [z] | 91 mm |
| Fan Location | Warm Side |
| Heat Transfer Type | Direct to Air |
| Operating Temperature [Max] | 54 °C |
| Operating Temperature [Min] | -10 °C |
| Power - Cooling | 31 W |
| Power - Input | 58 W |
| Voltage | 12 V |
| Weight | 2.6 lbs |
| Weight | 1.2 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 394.30 | |
| 5 | $ 369.66 | |||
| 10 | $ 359.80 | |||
| 25 | $ 308.05 | |||
Description
General part information
DAC035-12 Series
Direct to Air Thermoelectric Assembly 31 W
