TCLAMP2512N.TCT

Active

Semtech Corporation

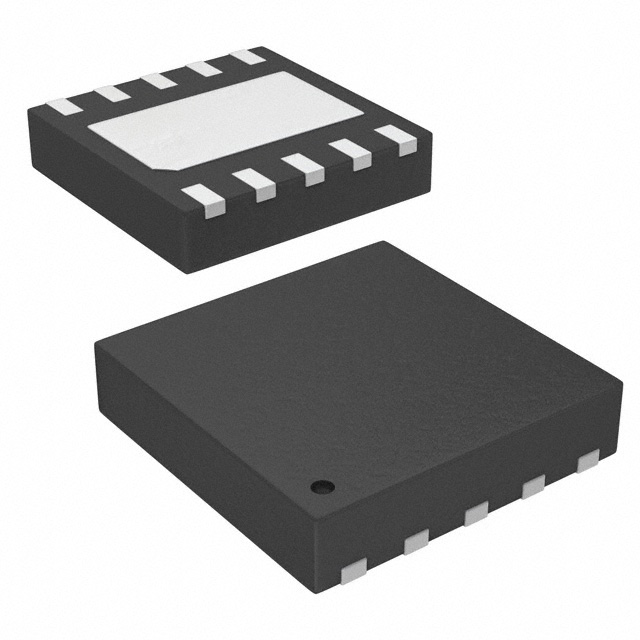

2-LINE, 2.5V, 12PF, 100A, SLP2626P10

Search across all available documentation for this part.

Active

Semtech Corporation

2-LINE, 2.5V, 12PF, 100A, SLP2626P10

Technical Specifications

Parameters and characteristics for this part

Specification	TCLAMP2512N.TCT

Applications	Telecom, Ethernet
Capacitance @ Frequency	10 pF
Current - Peak Pulse (10/1000µs)	120 A
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-UFDFN Exposed Pad
Power - Peak Pulse	2.3 kW
Power - Peak Pulse	2300 W
Power Line Protection	True
Supplier Device Package	SLP2626P10 (2.6x2.6)
Type	Steering
Unidirectional Channels	2
Voltage - Breakdown (Min) [Min]	2.7 V
Voltage - Reverse Standoff (Typ)	2.5 V

Part	Package / Case	Capacitance @ Frequency	Voltage - Reverse Standoff (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Power - Peak Pulse	Power - Peak Pulse	Voltage - Breakdown (Min) [Min]	Unidirectional Channels	Type	Supplier Device Package	Current - Peak Pulse (10/1000µs)	Applications	Power Line Protection	Mounting Type
Semtech Corporation TCLAMP2512N.TCT	10-UFDFN Exposed Pad	10 pF	2.5 V	-40 °C	85 °C	2.3 kW	2300 W	2.7 V	2	Steering	SLP2626P10 (2.6x2.6)	120 A	Ethernet Telecom		Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Clamp 120A (8/20µs) Ipp Tvs Diode Surface Mount SLP2626P10 (2.6x2.6)
