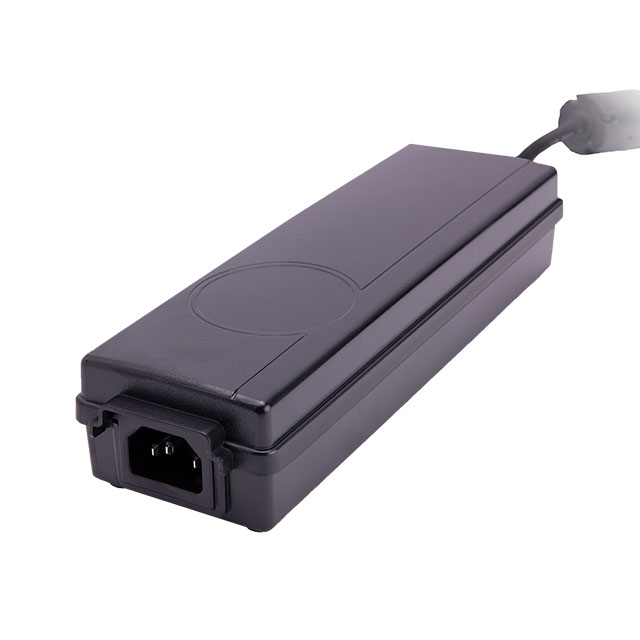

MW155RA2451F01
ObsoleteSL POWER / Advanced Energy
AC/DC DESKTOP ADAPTER 24V 120W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MW155RA2451F01
ObsoleteSL POWER / Advanced Energy
AC/DC DESKTOP ADAPTER 24V 120W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MW155RA2451F01 |
|---|---|
| Applications | Medical |
| Approval Agency | cURus, DEMKO, CE |
| Cord Length | 1.83 m |
| Cord Length | 72 in |
| Current - Output (Max) [Max] | 5 A |
| Efficiency | Level IV |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Rectangular, 6 Position |
| Power (Watts) | 120 W |
| Region Utilized | International |
| Size / Dimension [x] | 6.6 " |
| Size / Dimension [x] | 167 mm |
| Size / Dimension [y] | 82 mm |
| Size / Dimension [y] | 3.2 in |
| Size / Dimension [z] | 1.6 " |
| Size / Dimension [z] | 40 mm |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 24 V |
| Weight | 1.5 lb |
| Weight | 680.4 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MW155RA2451 Series
24V 120 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
