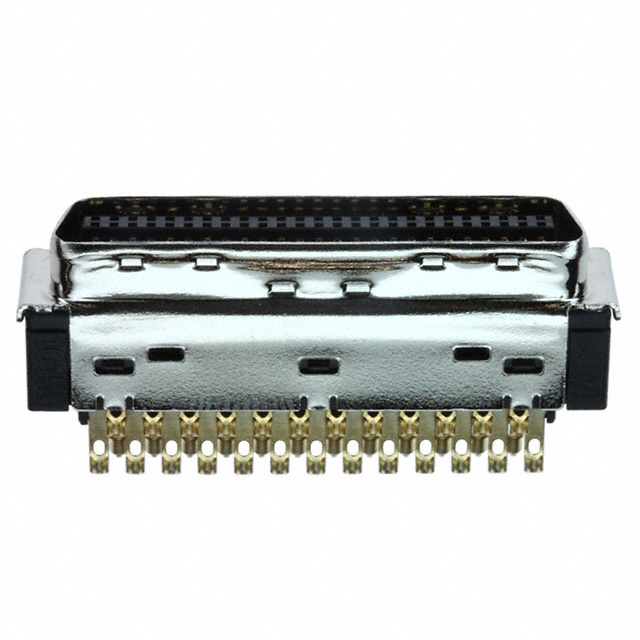

10150-3000PE

Active

3M (TC)

CONN PLUG 50POS STR SLDR CUP

Search across all available documentation for this part.

Active

3M (TC)

CONN PLUG 50POS STR SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Connector Style	Termination	Number of Positions	Contact Finish	Features	Flange Feature	Flange Feature
3M (TC) 10150-9000JL	2	Board Edge Straddle Mount	8 çin	0.203 çm	Plug	Center Strip Contacts	Solder	50	Gold	Shielded
3M (TC) 10150-5212PC	2	Panel Mount Right Angle Through Hole	30 Áin	0.76 Ám	Plug	Center Strip Contacts	Solder	50	Gold	Shielded	Housing/Shell	2.6 M
3M (TC) 10150-52E2VC	2	Panel Mount Right Angle Through Hole	30 Áin	0.76 Ám	Plug	Center Strip Contacts	Solder	50	Gold	Board Lock Shielded	Housing/Shell (4-40)
3M (TC) 10150-90AAPC	2	Board Edge Straddle Mount	30 Áin	0.76 Ám	Plug	Center Strip Contacts	Solder	50	Gold	Shielded
3M (TC) 10150-3000VC	2	Free Hanging (In-Line)	30 Áin	0.76 Ám	Plug	Center Strip Contacts		50	Gold	Shielded
3M (TC) 10150-3000VE	2	Free Hanging (In-Line)	20 µin	0.51 µm	Plug	Center Strip Contacts		50	Gold	Shielded
3M (TC) 10150-3000PE	2	Free Hanging (In-Line)	20 µin	0.51 µm	Plug	Center Strip Contacts		50	Gold	Shielded
3M (TC) 10150-7242VC	2	Panel Mount Right Angle Through Hole	30 Áin	0.76 Ám	Plug	Center Strip Contacts	Solder	50	Gold	Board Lock Shielded	Housing/Shell (4-40)
3M (TC) 10150-52E2PC	2	Panel Mount Right Angle Through Hole	30 Áin	0.76 Ám	Plug	Center Strip Contacts	Solder	50	Gold	Board Lock Shielded	Housing/Shell (4-40)
3M (TC) 10150-72E2PC	2	Panel Mount Right Angle Through Hole	30 Áin	0.76 Ám	Plug	Center Strip Contacts	Solder	50	Gold	Board Lock Shielded	Housing/Shell (4-40)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Plug Connector Free Hanging (In-Line) Solder Cup

Technical documentation and resources
