OD1232-SPOT

Active

Orion Fans

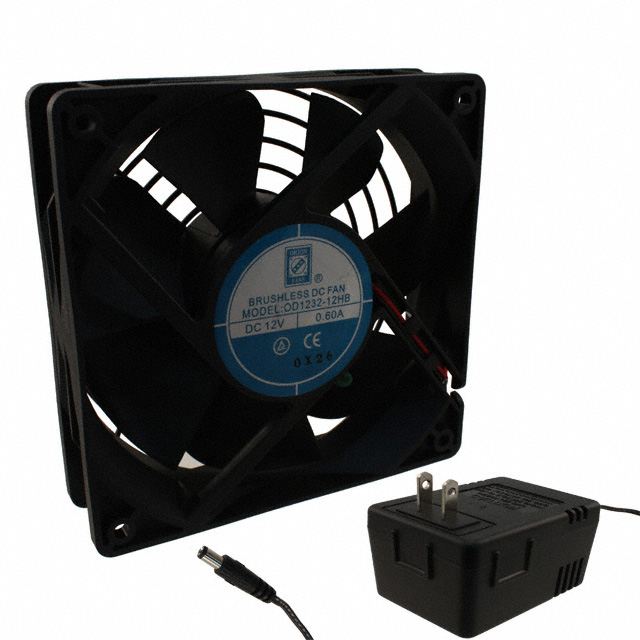

DC FAN AXIAL BALL BEARING 120V 120CFM 47DB 120 X 120 X 32MM

Deep-Dive with AI

Search across all available documentation for this part.

OD1232-SPOT

Active

Orion Fans

DC FAN AXIAL BALL BEARING 120V 120CFM 47DB 120 X 120 X 32MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD1232-SPOT

Air Flow	3.36 m³/min
Air Flow	120 CFM
Bearing Type	Ball
Current Rating (Amps)	600 mA
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP), Kit, Auto Restart
Material - Blade	Polybutylene Terephthalate (PBT)
Noise [Max]	47 dB
Noise [Min]	20 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	19 W
RPM	3750 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	107.1 Pa
Static Pressure	0.43 in H2O
Termination	Cord and Plug
Voltage - Rated	120 VAC
Width [y]	32 mm

OD1232 Series

Part	Features	Bearing Type	Material - Blade	Air Flow	Air Flow	RPM	Width [y]	Noise	Approval Agency	Current Rating (Amps)	Termination	Material - Frame	Static Pressure	Static Pressure	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Fan Type	Voltage - Rated	Voltage - Rated [custom]	Noise [Max]	Noise [Min]	Power (Watts)	Air Flow
Orion Fans OD1232-12MS02A	Locked Rotor Sensor	Sleeve	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	3 m³/min	107 CFM	3300 RPM	32 mm	48 dB	cURus TUV	0.5 A	3 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.33 in H2O	82.2 Pa	13.8 VDC	6 VDC	30000 Hrs	-10 °C	50 °C	50 °C	-10 °C	120 mm	120 mm	Tubeaxial	12 VDC
Orion Fans OD1232-12MS01A	Speed Sensor (Tach)	Sleeve	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	3 m³/min	107 CFM	3300 RPM	32 mm	48 dB	cURus TUV	0.5 A	3 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.33 in H2O	82.2 Pa	13.8 VDC	6 VDC	30000 Hrs	-10 °C	50 °C	50 °C	-10 °C	120 mm	120 mm	Tubeaxial	12 VDC
Orion Fans OD1232-24LB02A	Locked Rotor Sensor	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2.6 m³/min	93 CFM	2900 RPM	32 mm	44 dB	cURus TUV	0.22 A	3 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.27 in H2O	67.3 Pa	27.8 VDC	12 VDC	60000 Hrs	-20 °C	80 °C	80 C	-20 C	120 mm	120 mm	Tubeaxial	24 VDC
Orion Fans OD1232-12LSS02A	Locked Rotor Sensor	Sealed Sleeve	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2.6 m³/min	93 CFM	2900 RPM	32 mm	44 dB	cURus TUV	320 mA	3 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.27 in H2O	67.3 Pa	13.8 VDC	6 VDC	30000 Hrs	-10 °C	50 °C	50 °C	-10 °C	120 mm	120 mm	Tubeaxial	12 VDC
Orion Fans OD1232-48LS		Sleeve	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2.6 m³/min	93 CFM	2900 RPM	32 mm	44 dB	cURus TUV		2 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.27 in H2O	67.3 Pa	55.2 VDC	24 VDC	30000 Hrs	-10 °C	50 °C	50 °C	-10 °C	120 mm	120 mm	Tubeaxial		48 VDC
Orion Fans OD1232-SPOT	Auto Restart Kit Thermal Overload Protector (TOP)	Ball	Polybutylene Terephthalate (PBT)	3.36 m³/min	120 CFM	3750 RPM	32 mm			600 mA	Cord and Plug		0.43 in H2O	107.1 Pa				-10 °C	70 °C	70 °C	-10 °C	120 mm	120 mm	Tubeaxial	120 VAC		47 dB	20 dB	19 W
Orion Fans OD1232-48LB		Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2.6 m³/min	93 CFM	2900 RPM	32 mm	44 dB	cURus TUV		2 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.27 in H2O	67.3 Pa	55.2 VDC	24 VDC	60000 Hrs	-20 °C	80 °C	80 C	-20 C	120 mm	120 mm	Tubeaxial		48 VDC
Orion Fans OD1232-48HS		Sleeve	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	3.36 m³/min	120 CFM	3750 RPM	32 mm		cURus TUV	0.18 A	2 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.42 in H2O	104.6 Pa	55.2 VDC	24 VDC	30000 Hrs	-10 °C	50 °C	50 °C	-10 °C	120 mm	120 mm	Tubeaxial		48 VDC
Orion Fans OD1232-48MSS01A	Speed Sensor (Tach)	Sealed Sleeve	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	107 CFM		3300 RPM	32 mm	48 dB	cURus TUV	150 mA	3 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.33 in H2O	82.2 Pa	55.2 VDC	24 VDC	30000 Hrs	-10 °C	50 °C	50 °C	-10 °C	120 mm	120 mm	Tubeaxial		48 VDC				3 mł/min
Orion Fans OD1232-24LS		Sleeve	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2.6 m³/min	93 CFM	2900 RPM	32 mm	44 dB	cURus TUV	0.22 A	2 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.27 in H2O	67.3 Pa	27.8 VDC	12 VDC	30000 Hrs	-10 °C	50 °C	50 °C	-10 °C	120 mm	120 mm	Tubeaxial	24 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 50.77
Digikey	Box	1	$ 50.01
		20	$ 50.01

Description

General part information

OD1232 Series

Fan Tubeaxial 120VAC Square - 120mm L x 120mm H Ball 120.0 CFM (3.36m³/min) Cord and Plug
