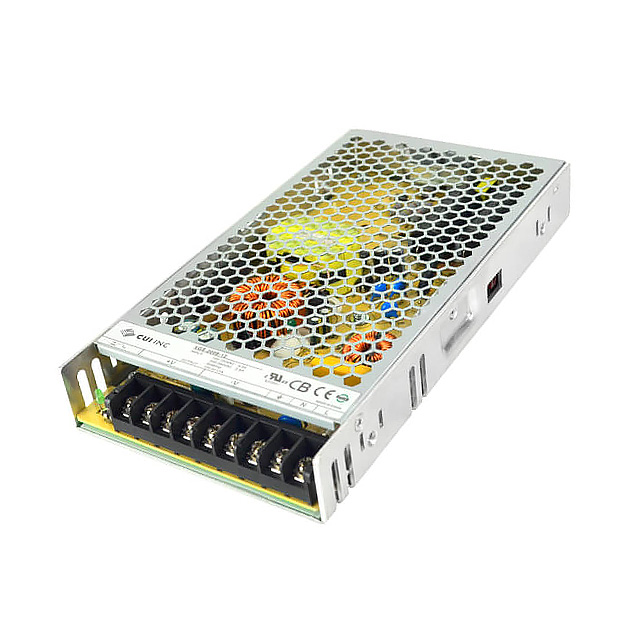

VGS-200B-12
ObsoleteCUI Inc.
AC/DC POWER SUPPLY SINGLE-OUT 12V 17A 204W 9-PIN
Deep-Dive with AI
Search across all available documentation for this part.
VGS-200B-12
ObsoleteCUI Inc.
AC/DC POWER SUPPLY SINGLE-OUT 12V 17A 204W 9-PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VGS-200B-12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | SIQ, CB Scheme, EN, UL, TUV, IEC, FCC |
| Current - Output 1 | 17 A |
| Efficiency | 87.5 % |
| Features | Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 204 W |
| Size / Dimension [x] | 215 mm |
| Size / Dimension [x] | 8.46 " |
| Size / Dimension [y] | 4.53 " |
| Size / Dimension [y] | 115 mm |
| Size / Dimension [z] | 30 mm |
| Size / Dimension [z] | 1.18 in |
| Standard Number | 55024, 55032 Class B, 61000-3-3, 61000-3-2, 60950-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 132 VAC, 264 VAC |
| Voltage - Input [Min] | 90 VAC, 180 VAC |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 58.59 | |
| 9 | $ 56.82 | |||
| 18 | $ 55.04 | |||
| 27 | $ 53.27 | |||
| 54 | $ 51.49 | |||
| 108 | $ 49.72 | |||
Description
General part information
VGS-200 Series
Enclosed AC DC Converters 1 Output 12V 90 ~ 132 VAC, 180 ~ 264 VAC Input
