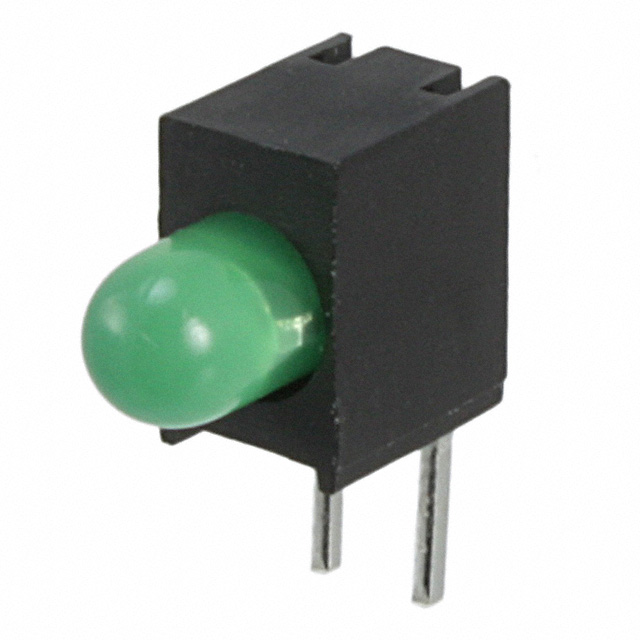

WP1384AD/GD
ActiveKingbright
LED CBI 3.4MM GRN DIFF RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WP1384AD/GD
ActiveKingbright
LED CBI 3.4MM GRN DIFF RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WP1384AD/GD |
|---|---|
| Color | Green |
| Configuration | Single |
| Current | 25 mA |
| Lens Size [diameter] | 3.4 mm |
| Lens Style | Round with Domed Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 32 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 60 ° |
| Wavelength - Peak | 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.71 | |
| 10 | $ 0.42 | |||
| 100 | $ 0.28 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| 2000 | $ 0.19 | |||
| 5000 | $ 0.17 | |||
| 10000 | $ 0.16 | |||
| 25000 | $ 0.15 | |||
Description
General part information
WP1384 Series
LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 2.2V 25mA Round with Domed Top 3.40mm Dia Through Hole, Right Angle
