TL32W000000

Active

APEM

TOGGLE SWITCH SMT TL PCB MOUNT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

APEM

TOGGLE SWITCH SMT TL PCB MOUNT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Bushing Thread	Illumination	Actuator Length [x]	Circuit	Features	Actuator Type	Termination Style	Electrical Life	Switch Function	Actuator Material	Voltage Rating - AC	Current Rating (Amps)	Voltage Rating - DC	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
APEM TL32WW00000	Unthreaded	Non-Illuminated	5.3 mm	SPDT	Epoxy Sealed Terminals	Standard Round	PC Pin	60000 Cycles	On-Mom	Brass Nickel Plated	20 V	0.4 VA	20 V	Right Angle Through Hole Vertical	-30 ░C	85 °C
APEM TL32W000000	Unthreaded	Non-Illuminated	5.3 mm	SPDT	Epoxy Sealed Terminals	Standard Round	PC Pin	60000 Cycles	On-Mom	Brass Nickel Plated	20 V	0.4 VA	20 V	Through Hole Right Angle	-30 ░C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

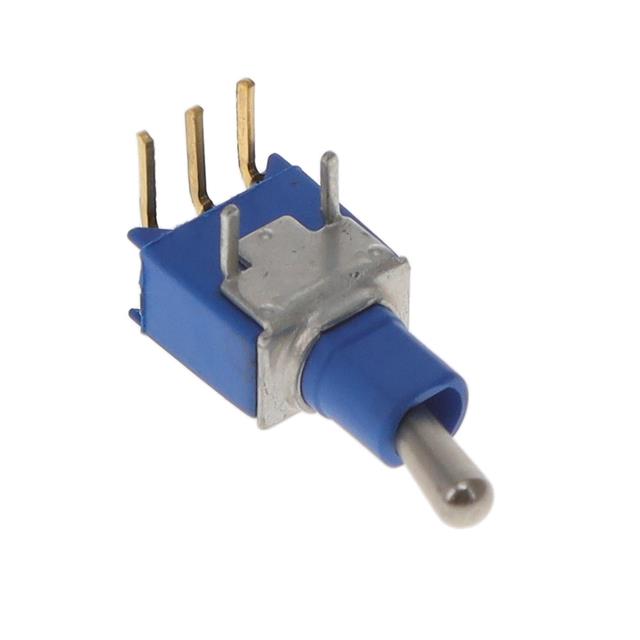

Toggle Switch SPDT Through Hole, Right Angle
