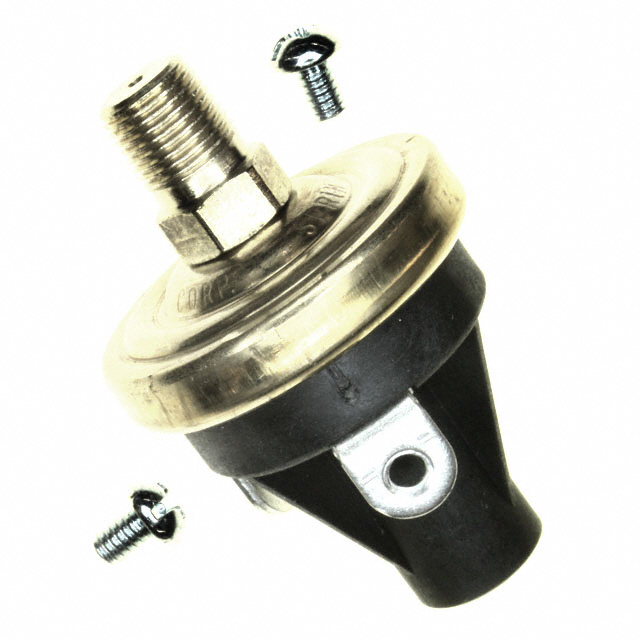

76061-00000020-01

Active

Honeywell Sensing and Productivity Solutions

SWITCH PRESSURE N.C. 2PSI

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH PRESSURE N.C. 2PSI

Technical Specifications

Parameters and characteristics for this part

Part	Output Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Port Style	Pressure Type	Operating Pressure [x]	Operating Pressure [x]	Termination Style	Port Size	Port Size	Port Size	Package / Case	Operating Pressure [Min]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Max]
Honeywell Sensing and Productivity Solutions 76061-00000030-05
Honeywell Sensing and Productivity Solutions 76061-00000020-01	SPST-NC	500 PSI	3447.38 kPa	Industrial Automation	-40 °C	121 °C	Threaded	Switch	13.79 kPa	2 PSI	Screw Terminal	0.125 "	3.18 mm	Male	Cylinder
Honeywell Sensing and Productivity Solutions 76061-00000015-01	SPST-NC	500 PSI	3447.38 kPa		-40 °C	121 °C	Threaded	Switch			Screw Terminal	0.125 "	3.18 mm	Male	Cylinder Threaded	1.1 PSI	7.58 kPa	3 PSI	20.68 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SWITCH PRESSURE N.C. 2PSI

Technical documentation and resources
