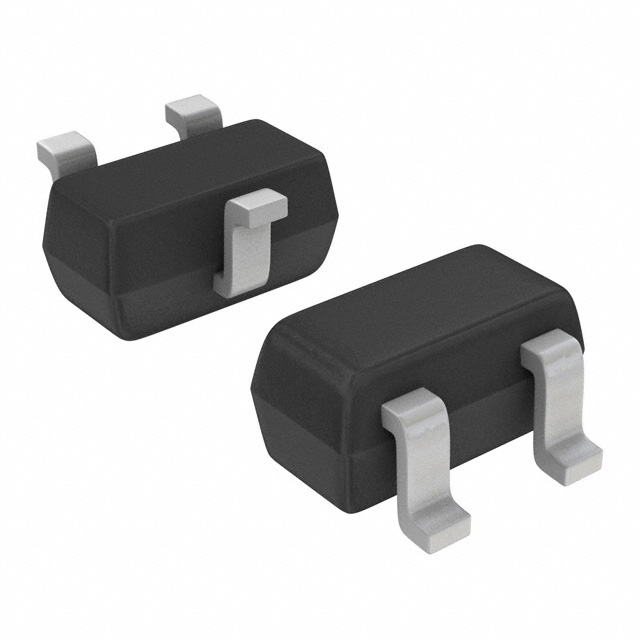

NZF220TT1

Obsolete

ON Semiconductor

FILTER RC(PI) 110 OHM/22PF SMD

Search across all available documentation for this part.

Obsolete

ON Semiconductor

FILTER RC(PI) 110 OHM/22PF SMD

Technical Specifications

Parameters and characteristics for this part

Specification	NZF220TT1

Applications	Data Lines for Mobile Devices
Center / Cutoff Frequency	220 MHz
ESD Protection	True
Filter Order	2nd
Height [z]	0.035 in
Height [z]	0.9 mm
Mounting Type	Surface Mount
Number of Channels	1
Package / Case	SC-75, SOT-416
Resistance - Channel (Ohms)	110 Ohms
Size / Dimension [x]	1.6 mm
Size / Dimension [x]	0.063 in
Size / Dimension [y]	0.032 in
Size / Dimension [y]	0.8 mm
Technology	RC (Pi)
Type	Low Pass
Values	22 pF, 110 Ohms

EMI Filter with ESD Protection

Part	Number of Channels	Technology	Height [z]	Height [z]	Center / Cutoff Frequency	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Mounting Type	Resistance - Channel (Ohms)	Applications	Values	Filter Order	Number of Channels [custom]
ON Semiconductor NZF220TT1G	1	RC (Pi)	0.035 in	0.9 mm	220 MHz	SC-75 SOT-416	1.6 mm	0.032 in	0.063 in	0.8 mm	Low Pass	Surface Mount	110 Ohms	Data Lines for Mobile Devices	22 pF 110 Ohms	2nd
ON Semiconductor NZF220DFT1G		RC (Pi)	0.043 in	1.09 mm	220 MHz	5-TSSOP SC-70-5 SOT-353	2 mm	0.049 in	0.079 in	1.25 mm	Low Pass	Surface Mount	110 Ohms	Data Lines for Mobile Devices	22 pF 110 Ohms	2nd	2
ON Semiconductor NZF220TT1	1	RC (Pi)	0.035 in	0.9 mm	220 MHz	SC-75 SOT-416	1.6 mm	0.032 in	0.063 in	0.8 mm	Low Pass	Surface Mount	110 Ohms	Data Lines for Mobile Devices	22 pF 110 Ohms	2nd
ON Semiconductor SNZF220DFT1G		RC (Pi)	0.043 in	1.09 mm	220 MHz	5-TSSOP SC-70-5 SOT-353	2 mm	0.049 in	0.079 in	1.25 mm	Low Pass	Surface Mount	110 Ohms		22 pF 110 Ohms	2nd	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

EMI Filter with ESD Protection
